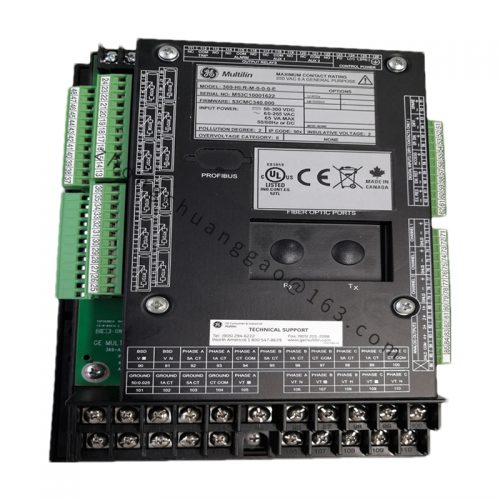

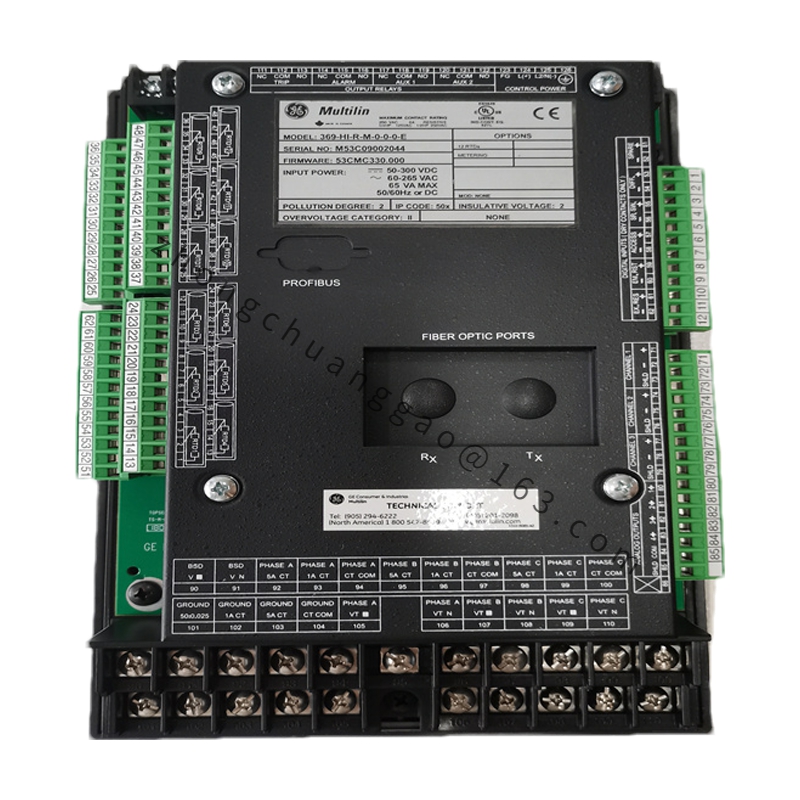

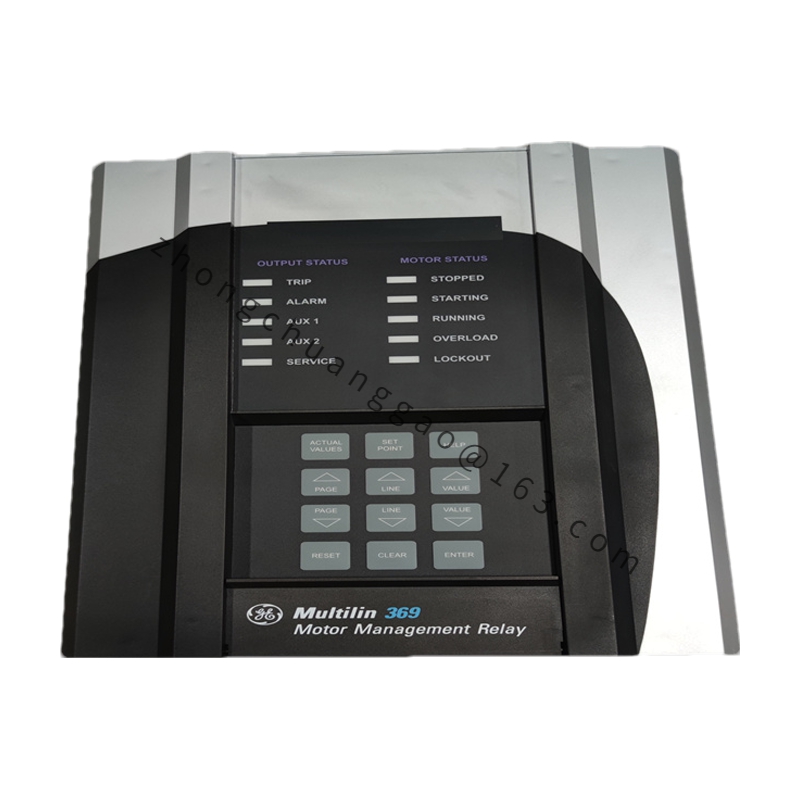

GE 369-HI-R-M-0-0-0-E

Technical Specifications:
Brand: General Electric (GE)
Model: 369-HI-R-M-0-0-0-E
Type: Motor Management Relay / Power Relay
Relay Type: Electromagnetic Relay
Input Voltage Range: 12-48VDC
Output Voltage: 5VDC
Output Current: Maximum 10A
Efficiency: Greater than 90%
Size: 170mm x 105mm x 32mm
Weight: Approximately 120g
Operating Temperature: -20°C to +50°C
Storage Temperature: -40°C to +70°C
Humidity: 5% to 95% RH (non-condensing)
CPU: 32-bit RISC Processor
WhatApp
WeChat

Detailed content

Functional Characteristics:
Contact Capacity: Large, capable of withstanding high current loads, suitable for controlling motor start, stop, and direction.
Mechanical Lifespan: Long, maintaining normal operation after multiple actuations.
Electrical Lifespan: Also long, suitable for continuous operation in industrial automation equipment requiring long-term stability.
Protection Features:
Overload Protection: Monitors motor current and disconnects the circuit if it exceeds a set threshold.
Temperature Monitoring: Measures motor temperature to prevent overheating.
Phase Sequence Protection: Ensures correct motor phase sequence to prevent reverse rotation or unsafe conditions.
Stall Protection: Detects motor stall and takes measures to stop the motor to prevent damage.
Communication Interface: May be equipped with communication interfaces for remote monitoring and control.
Fault Recording: Some models may have fault recording capabilities to aid in diagnosis and maintenance.
Programmability: Often programmable to suit specific application requirements.
Application Scenarios:
Industrial Automation: Suitable for various industrial automation equipment requiring motor control.
Power Plants: Used in power generation systems to monitor and protect generators, transformers, and other critical equipment.
Substations: Monitors and protects high-voltage equipment and distribution devices in substations.
Transmission and Distribution Systems: Ensures safe distribution of electrical energy to end-users by detecting current overloads, voltage abnormalities, and other power system issues.
Industrial Facilities: Protects key production equipment from damage or downtime, ensuring process stability and continuity.
Aerospace: Similar protection devices may be used in aerospace applications to monitor and safeguard spacecraft and related equipment.
