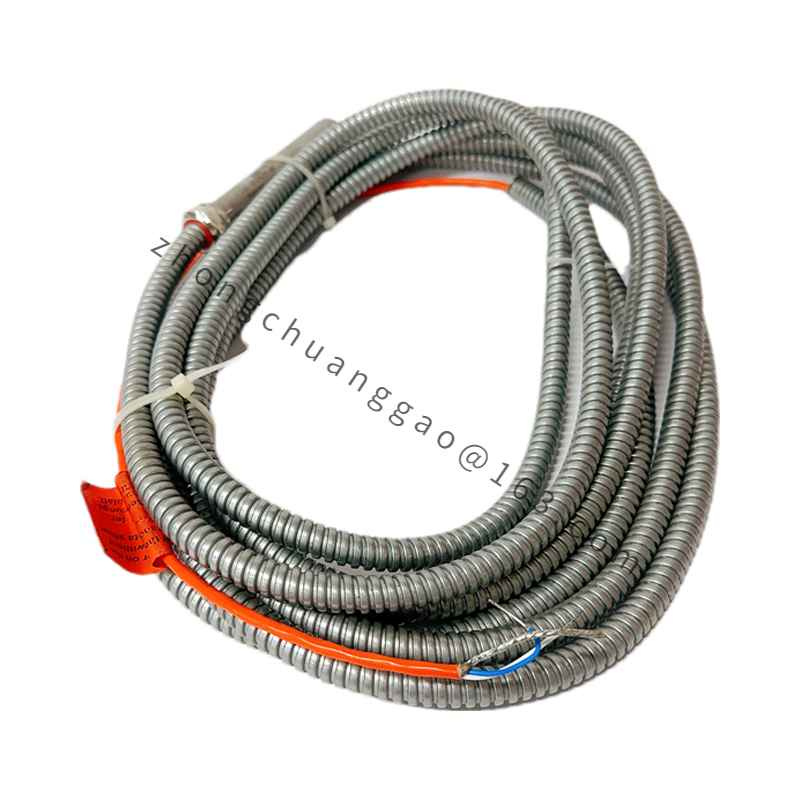

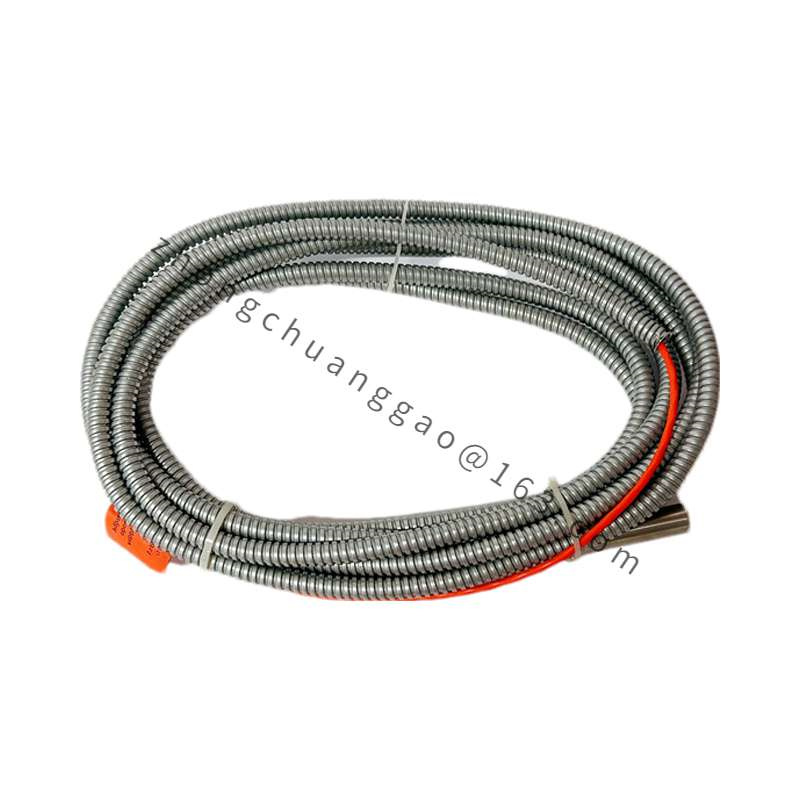

Technical Specifications:

• Measurement Principle: Based on Hall Effect
• Measurement Range: ±0.5 mm (for displacement or vibration measurements)
• Sensitivity: 16 V/mm
• Frequency Range: 0 to 12 kHz
• Head Diameter: 5 mm
• Thread for Housing: M6x1
• Power Supply: 10 to 30 V DC with 10% ripple allowed
• Current Consumption: Max. 25 mA at 25°C and 24 V
• Output: Push-pull output buffer, high/low voltage levels specified (e.g., >10V and <1V under certain load conditions)
• Pulse Rise and Fall Time: <1 µs (no-load and overload conditions across the frequency range)
• Dynamic Output Resistance: <1 kΩ
• Allowable Loads: Resistive load up to 400 Ω, capacitive load up to 30 nF
• Environmental Conditions:
  • Operating Temperature: -30°C to +100°C
  • Maximum Temperature for 30 seconds (non-damaging): 120°C
  • Storage Temperature: -40°C to +100°C
• Protection Rating: IP66 (conforms to DIN 40050)

Functional Characteristics:

• Non-contact Measurement: Achieved through mechanical triggering of magnetic markers
• High Sensitivity: Enables precise detection of small changes in position or speed
• Reliability: Long service life with excellent anti-electromagnetic interference, shock, and vibration resistance
• Versatility: Suitable for a wide range of industrial applications

Application Scenarios:

• Rotational Speed Measurement: In automotive engines, machinery, and industrial automation systems, where it converts the rotational speed of mechanical components into electrical signals.
• Vibration Monitoring: Used in turbines, compressors, fans, gearboxes, and pumps to monitor vibrations and prevent potential failures.
• Displacement Measurement: Measures axial and radial displacements, shaft eccentricities, and wear in rotating machinery.
• Integration: Can be integrated with monitoring and protection systems such as MMS 3000 and MMS 6000 from EPRO.
