Board Type:Single-Ended

Operating Temperature Range:-40°C to +85°C

Power Supply Voltage:3.3V to 5V

Data Transfer Rate:Up to 1Mbps

Signal Processing:CMOS Compatible

Pin Configuration:24-Pin DIP

Board Size:50mm x 50mm

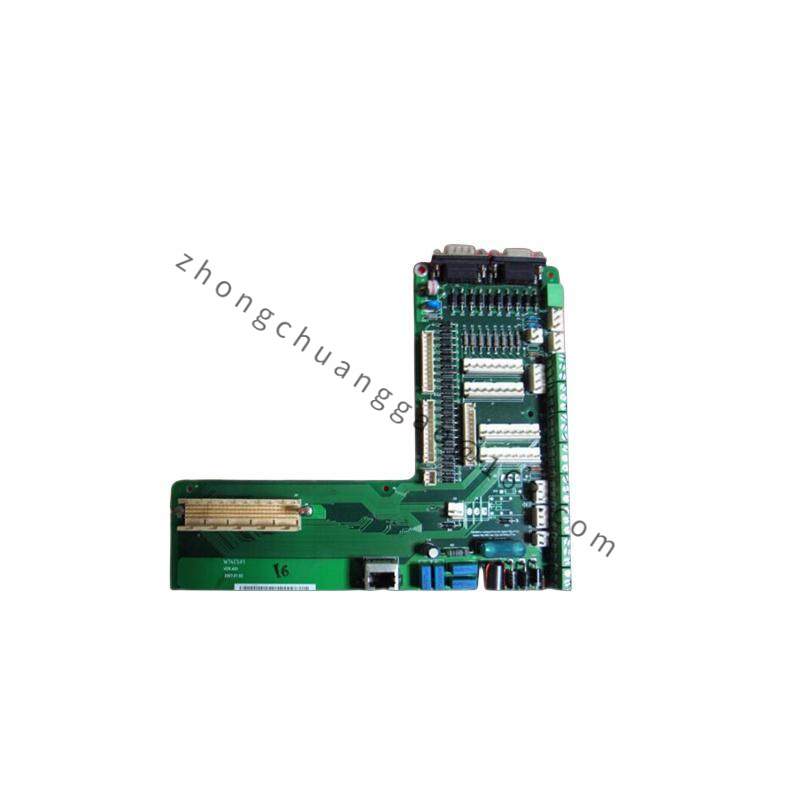

    Engineered with precision electronics, the Emerson W74C5X1 Signal Transfer Board is a critical component for enhancing the performance of industrial automation systems.

    This versatile board supports a wide range of signal conversion types, including analog-to-digital and digital-to-analog, making it suitable for complex communication scenarios.

    Operates within an extended temperature range from -40°C to +85°C, ensuring reliability in harsh industrial environments.

    Equipped with robust RS-485 and RS-232 interfaces, the W74C5X1 facilitates efficient data exchange between diverse control systems and devices.

    With compatibility for both 5V and 12V power supplies, this board offers flexibility in integration with different industrial setups, optimizing energy usage and system efficiency.
