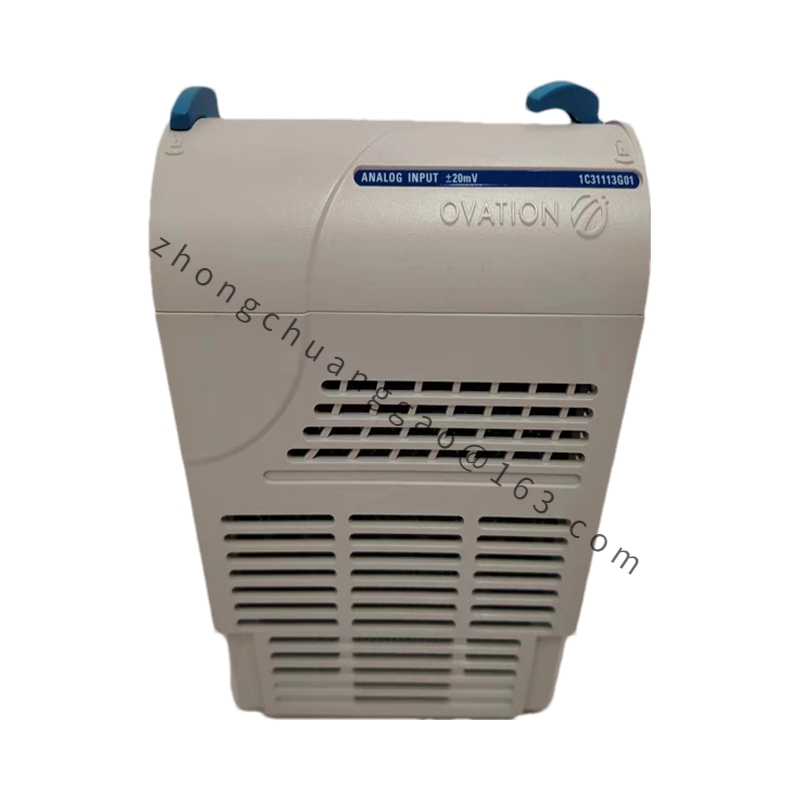

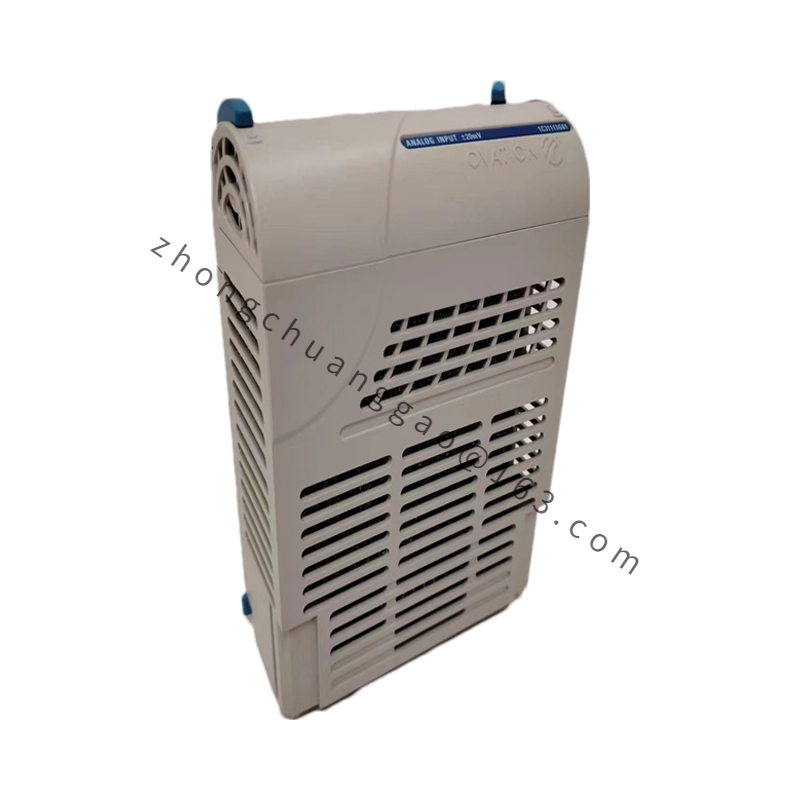

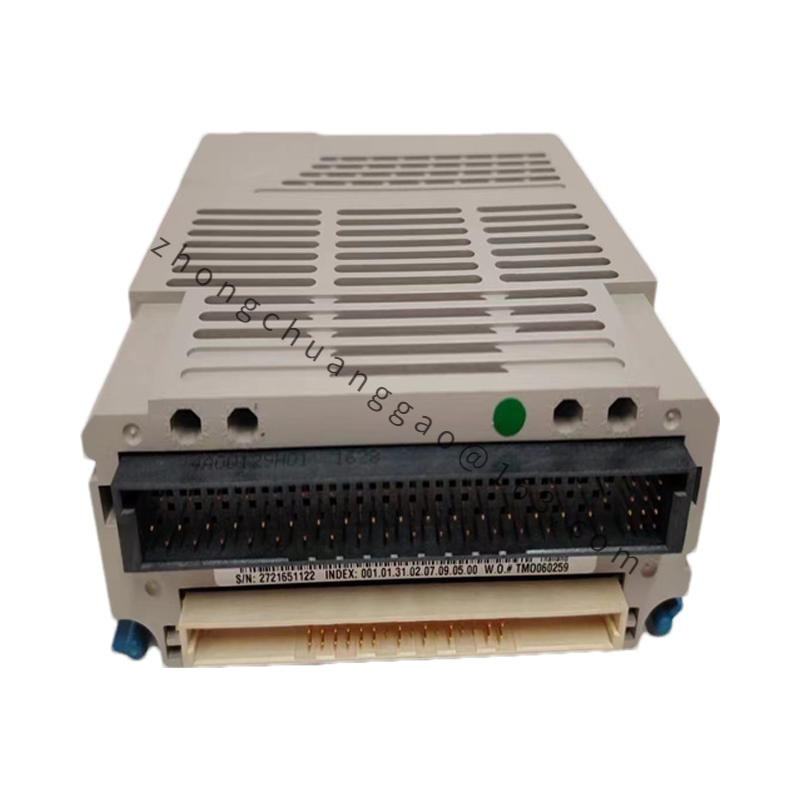

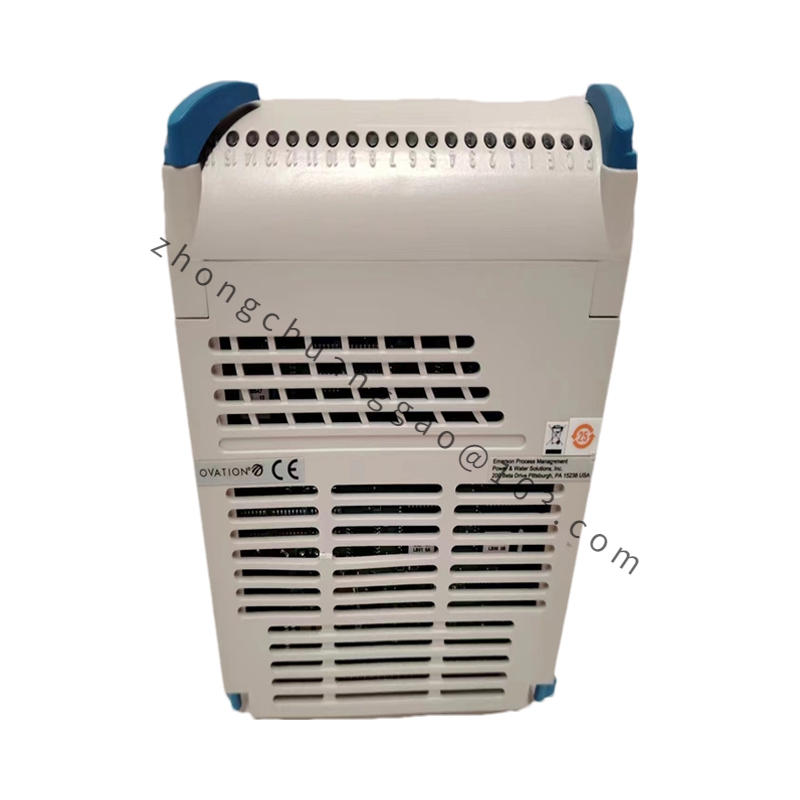

Emerson 1C31113G01
Emerson 1C31113G01
technical specifications
Input range: ± 20mV
Resolution: 13 bits
Communication interface: Supports RS-485 bus for data communication
Purpose: To convert analog signals (such as voltage or current) into digital signals that can be understood by computers or controllers
Directive compliant: 2014/35/EU – low voltage directive 2014
Functional characteristics
High precision conversion: The 13 bit resolution ensures high precision in signal conversion.
Wide input range: The input range of ± 20mV enables it to process multiple analog signals.
Data communication: Data communication is carried out through the RS-485 bus, providing analog to 485 conversion function.
Multi range support: Supports high-speed and high-precision signal acquisition across multiple ranges (voltage/current).
Inter channel isolation: high channel density, high common mode voltage, and implementation of miswiring protection.
Detailed content
Application scenarios
Industrial automation system: connects various sensors, such as temperature sensors, pressure sensors, etc., for data acquisition, processing, and control of automation systems.
Process control: used in manufacturing, energy, chemical, automotive and other industries to monitor and control process parameters such as temperature, pressure, liquid level, etc.
Power system: monitoring and controlling the status and operation of the power system, including switch control, fault detection and alarm, power quality monitoring, etc.
Emerson 1C31113G01 is a powerful analog input module suitable for industrial automation and process control fields. Its high precision, wide input range, and multi range support enable it to process various analog signals and achieve efficient data communication through the RS-485 bus. Whether connecting sensors in industrial automation systems or monitoring and controlling the status of power equipment in power systems, Emerson 1C31113G01 can provide stable and reliable performance.
