Technical Specifications

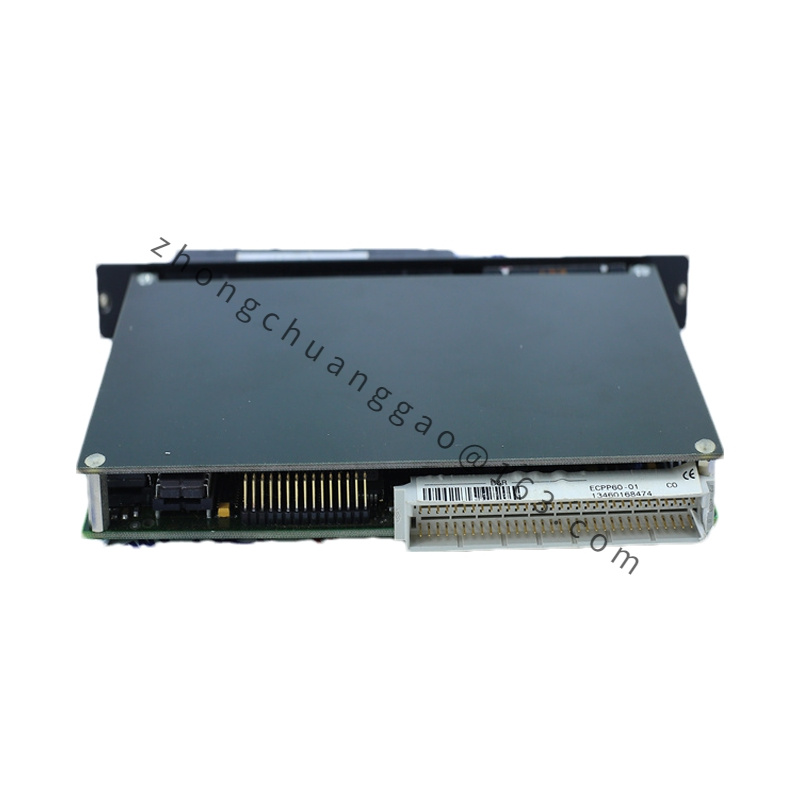

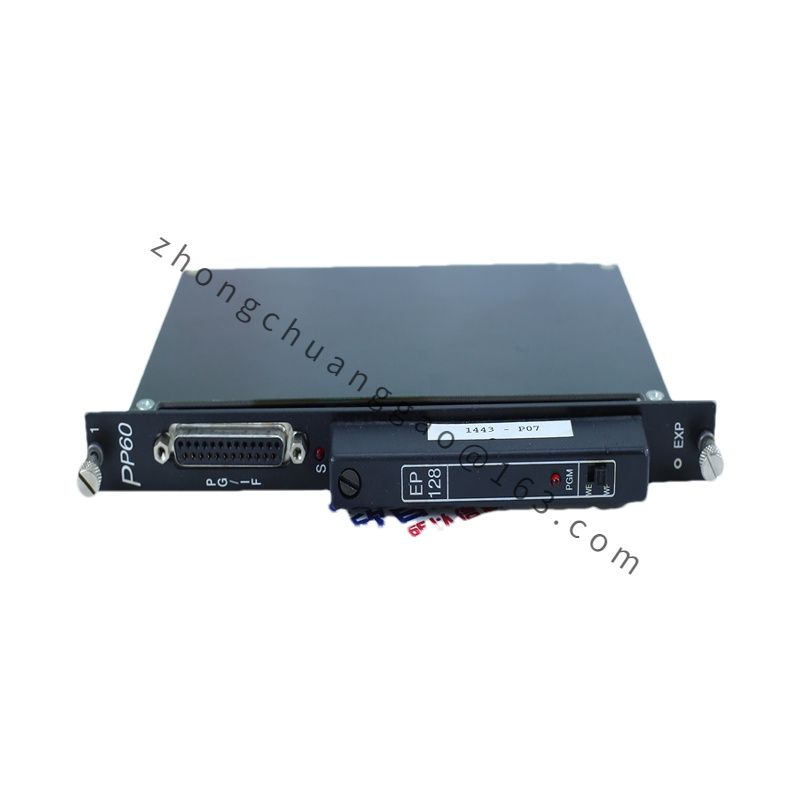

1. Model: ECEP128-0
2. Type: Digital I/O Module
3. Channels:
   • Inputs: Typically provides 64 digital input channels.
   • Outputs: Typically provides 64 digital output channels.
   • The exact channel configuration and quantities can be verified in the product datasheet.
4. Signal Type:
   • Inputs: Digital signals, which may include discrete ON/OFF states.
   • Outputs: Digital signals, used for switching applications.
5. Voltage Range:
   • Input Voltage: Often compatible with standard logic levels (e.g., 24V DC).
   • Output Voltage: Typically outputs are designed for compatibility with standard industrial voltage levels (e.g., 24V DC).
6. Current Handling:
   • Input Current: Designed to handle standard digital input currents.
   • Output Current: Capable of driving standard digital loads. The specific current ratings should be confirmed in the product documentation.
7. Communication Protocol:
   • Fieldbus Integration: Usually integrates with fieldbus systems such as Ethernet/IP or PROFINET, providing communication between the I/O module and the central control system.
8. Dimensions:
   • Form Factor: Typically compact, designed for DIN rail or panel mounting to fit into control cabinets.
9. Operating Conditions:
   • Temperature Range: Usually operates within an industrial temperature range of 0 to 55°C.
   • Relative Humidity: Designed for environments with relative humidity up to 95% (non-condensing).

Features

1. High Density I/O: Provides a high number of digital I/O channels in a compact form factor, which is beneficial for applications requiring many discrete signals.
2. Flexible Configuration: Can be configured for various applications, allowing for customization of input and output settings.
3. Robust Design: Built to withstand harsh industrial environments, ensuring reliability and durability in challenging conditions.
4. Seamless Integration: Integrates easily with B&R’s Automation Studio and other B&R automation components, simplifying configuration and management.
5. Real-Time Performance: Supports real-time performance for applications that require precise timing and control.

Application Scenarios

1. Industrial Automation: Ideal for applications in manufacturing and process control systems where numerous digital inputs and outputs are needed.
2. Machine Control: Suitable for controlling and monitoring machinery, including switching operations and processing discrete signals.
3. Control Panels: Used in control panels to interface with various field devices and sensors, providing a central point for signal processing.
4. Process Monitoring: Applicable in process monitoring systems where high-density I/O is required for handling multiple digital signals.

Installation and Configuration

1. Mounting:
   • Form Factor: Designed for DIN rail or panel mounting, allowing for easy installation in standard control cabinets or enclosures.
2. Wiring:
   • Connections: Connects to field devices using standard wiring practices. The product manual provides detailed wiring diagrams and connection instructions.
3. Configuration:
   • Software: Configuration is managed through B&R’s Automation Studio software, which facilitates setup, parameter configuration, and integration with other system components.
