Technical Specifications

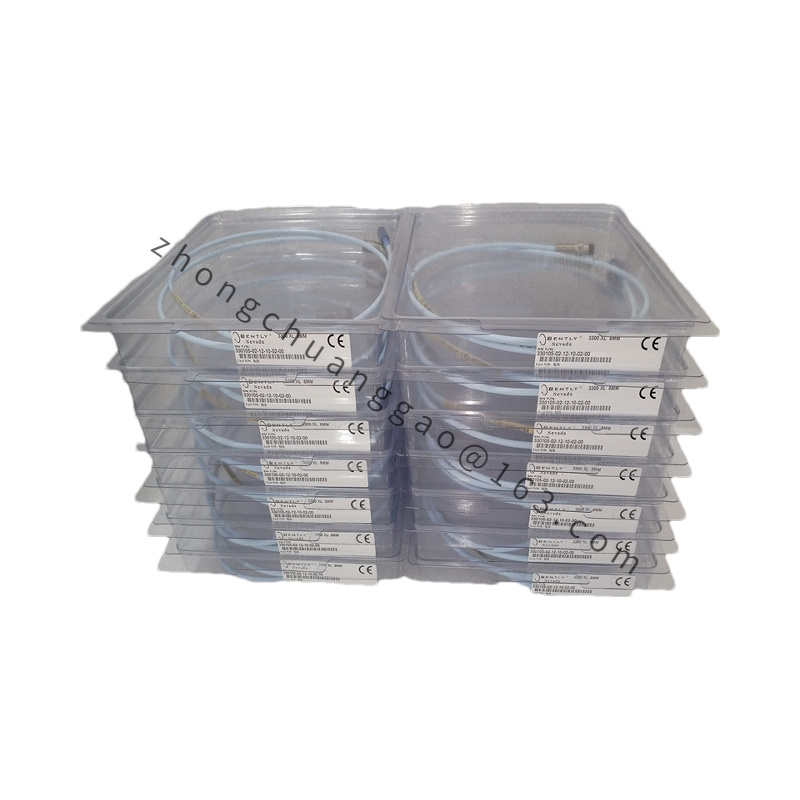

1. Model: 330105-02-12-10-02-00
2. Type: Vibration Probe System
3. Function: Measures vibration levels and shaft displacement using proximity probes, providing critical data for machinery condition monitoring.
4. Measurement Specifications:
   • Probe Type: Eddy current proximity probe.
   • Measurement Range: Designed to measure displacement with a range typically up to ±2 inches (±50 mm). The specific range may vary based on probe configuration and installation.
   • Frequency Response: Capable of capturing high-frequency vibrations, with a response suitable for frequencies up to several kHz, depending on the application and setup.
5. Electrical Characteristics:
   • Power Supply: Operates on 24V DC, which is a common standard for industrial monitoring equipment.
   • Output: Provides analog output signals, which are interfaced with monitoring systems for real-time analysis and data acquisition.
6. Environmental Conditions:
   • Temperature Range: Typically operates in a temperature range from -40°C to +70°C (-40°F to +158°F), ensuring reliability in various industrial environments.
   • Relative Humidity: Suitable for environments with relative humidity up to 95% (non-condensing).

Features

1. Precision Measurement: Provides high-accuracy measurements of shaft displacement and vibrations, essential for detailed condition monitoring and protective measures.
2. Real-Time Monitoring: Delivers real-time feedback on machinery conditions, facilitating early detection of issues and prompt corrective actions.
3. Durable Construction: Designed to endure harsh industrial environments, making it reliable for continuous operation in challenging conditions.
4. Seamless Integration: Integrates with Bently Nevada 3300 Series modules and other condition monitoring systems, offering a cohesive solution for machinery health monitoring.
5. Versatile Application: Suitable for a variety of machinery types, including turbines, compressors, pumps, and motors, across diverse industrial sectors.

Application Scenarios

1. Machinery Protection: Ideal for systems that require constant monitoring of vibrations and displacement to prevent damage and ensure safe operation.
2. Condition Monitoring: Provides essential data for ongoing machinery health assessment, predictive maintenance, and early fault detection.
3. Industrial Automation: Used in automation systems where accurate monitoring of machinery conditions is crucial for maintaining optimal performance.
4. Process Control: Valuable in process control applications to monitor and maintain the stability and efficiency of rotating machinery.

Installation and Configuration

1. Mounting:
   • Form Factor: The probe is typically mounted on a bracket or fixture near the rotating shaft. Correct alignment and secure mounting are critical for accurate measurement.
   • Installation: Involves positioning the probe correctly relative to the shaft and connecting it to the monitoring system. Installation procedures are detailed in the product manual.
2. Wiring:
   • Connections: Requires proper wiring to connect the probe to the monitoring system, including connections for power supply and signal output. Wiring diagrams and instructions are provided in the product documentation.
3. Configuration:
   • Calibration: Calibration is required to ensure accurate displacement measurements. Refer to the product manual for specific calibration procedures.
   • Integration: Integrates with Bently Nevada 3300 Series modules and other systems for a comprehensive condition monitoring setup. Configuration details are included in the product documentation.
