Technical Specifications

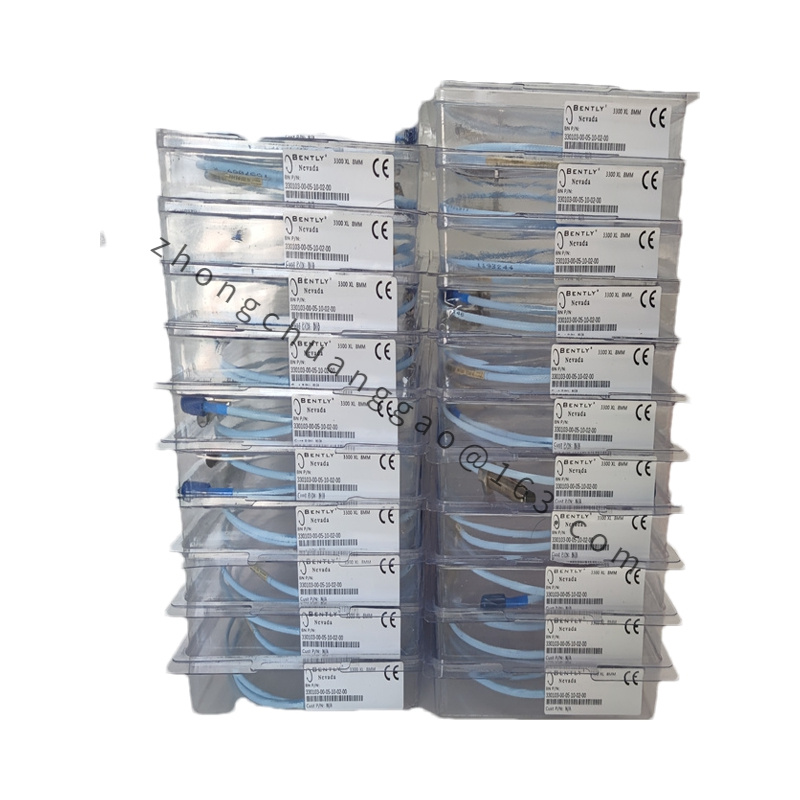

1. Model: 330103-00-05-10-02-00
2. Type: Vibration Probe System
3. Function: Measures vibrations and displacements in rotating machinery components using a proximity probe and associated electronics.
4. Measurement Specifications:
   • Probe Type: Eddy current proximity probe.
   • Measurement Range: Designed for accurate displacement measurements, typically with a range of up to ±2 inches (±50 mm), though exact specifications may vary based on the specific probe configuration.
   • Frequency Response: Capable of monitoring a broad frequency range, suitable for capturing high-frequency vibrations often up to several kHz.
5. Electrical Characteristics:
   • Power Supply: Generally operates on a 24V DC power supply, standard for many industrial monitoring systems.
   • Output: Provides analog output signals that can be interfaced with condition monitoring systems for real-time analysis and data acquisition.
6. Environmental Conditions:
   • Temperature Range: Designed to function effectively within an industrial temperature range, typically from -40°C to +70°C (-40°F to +158°F).
   • Relative Humidity: Suitable for operation in environments with relative humidity up to 95% (non-condensing).

Features

1. Precision Measurement: Provides high-accuracy measurements of shaft displacement and vibration, essential for precise condition monitoring and machinery protection.
2. Real-Time Data: Offers real-time feedback, enabling immediate detection and response to machinery issues.
3. Durability: Constructed to withstand harsh industrial environments, ensuring reliable operation in challenging conditions.
4. Integration: Designed for seamless integration with Bently Nevada’s 3300 Series and other machinery protection systems for a comprehensive monitoring solution.
5. Versatility: Suitable for a variety of industrial applications, including turbines, compressors, pumps, and motors.

Application Scenarios

1. Machinery Protection: Used in critical machinery protection systems to monitor and safeguard against displacement and vibration issues, thereby preventing potential damage.
2. Condition Monitoring: Essential for continuous monitoring of machinery condition, providing data for predictive maintenance and early fault detection.
3. Industrial Automation: Applied in industrial automation systems where precise measurement of machinery conditions is critical for maintaining system performance and reliability.
4. Process Control: Valuable in process control settings where monitoring the health and performance of rotating machinery is necessary for maintaining process stability.

Installation and Configuration

1. Mounting:
   • Form Factor: The probe is typically mounted on a bracket or similar fixture near the rotating shaft. Proper alignment and secure mounting are crucial for accurate measurement.
   • Installation: Involves positioning the probe correctly and connecting it to the monitoring system. Detailed installation procedures are outlined in the product manual.
2. Wiring:
   • Connections: Requires wiring to connect the probe to the monitoring system, including connections for power supply and signal output. Wiring diagrams and detailed instructions are provided in the product documentation.
3. Configuration:
   • Calibration: Calibration procedures are necessary to ensure accurate displacement measurement. Specific calibration instructions can be found in the product manual.
   • Integration: Integrates with Bently Nevada 3300 Series modules and other monitoring systems for comprehensive condition monitoring. Configuration details are provided in the product documentation.
