Product Type:Encoder Interface Module

Positioning Modules:Yes

Counter Resolution:32 bit

Output Voltage Range:+5 V, +15 V & 24 V Selectable by Jumper

Output Voltage:±10 V

Output Current:Max. ±2 mA

Protocol:CANopen to CiA DS 301

Current Consumption:320 mA at 5 VDC

Transfer Rate:10 k to 1 Mbaud

Number of Masters:4 per M1 Controller

Number of CAN Buses:2 per Module

Max. Number of Nodes:64 per CAN Bus

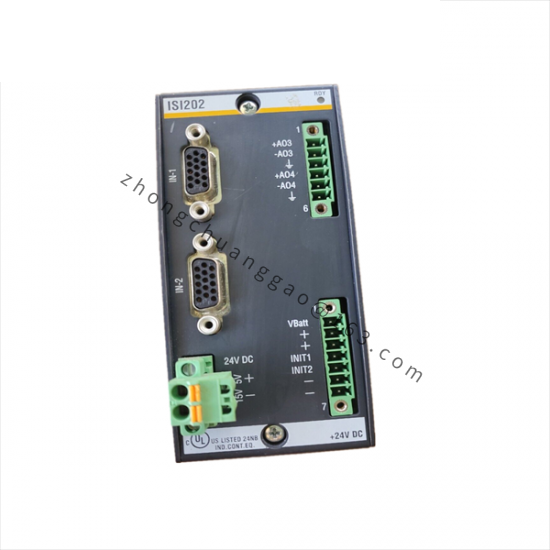

    The Bachmann ISI202 Encoder Interface Module is a cutting-edge solution designed for high-precision industrial automation systems. It integrates seamlessly with various positioning components, enhancing system reliability and efficiency.

    Featuring a robust 32-bit counter resolution, the module ensures accurate measurement and feedback for critical applications, from robotics to CNC machinery.

    With versatile communication options, including configurable output voltages and RS422 levels, the ISI202 supports seamless integration with existing control systems, enabling advanced functionality such as synchronization and pre-sync operations.

    Offering a comprehensive set of digital input channels, the module facilitates trigger events and homing operations, ensuring smooth operation and enhanced safety protocols.

    Built with precision in mind, the Bachmann ISI202 is designed for durability and reliability under demanding industrial conditions, ensuring consistent performance over extended periods.

    Its compatibility with CANopen to CiA DS 301 protocol ensures seamless interaction with a wide array of industrial devices, streamlining integration efforts and enhancing overall system performance.
