Technical Specifications

1. Model:
   • Model Number: IPC1412 FRE CM1G1 1G CF8G XPE
2. Processor:
   • Type: Intel Pentium III
   • Speed: 1 GHz
3. Memory:
   • RAM: 1 GB
4. Storage:
   • CompactFlash (CF) Card: 8 GB
5. Operating System:
   • OS: Windows XP Embedded (XPE)

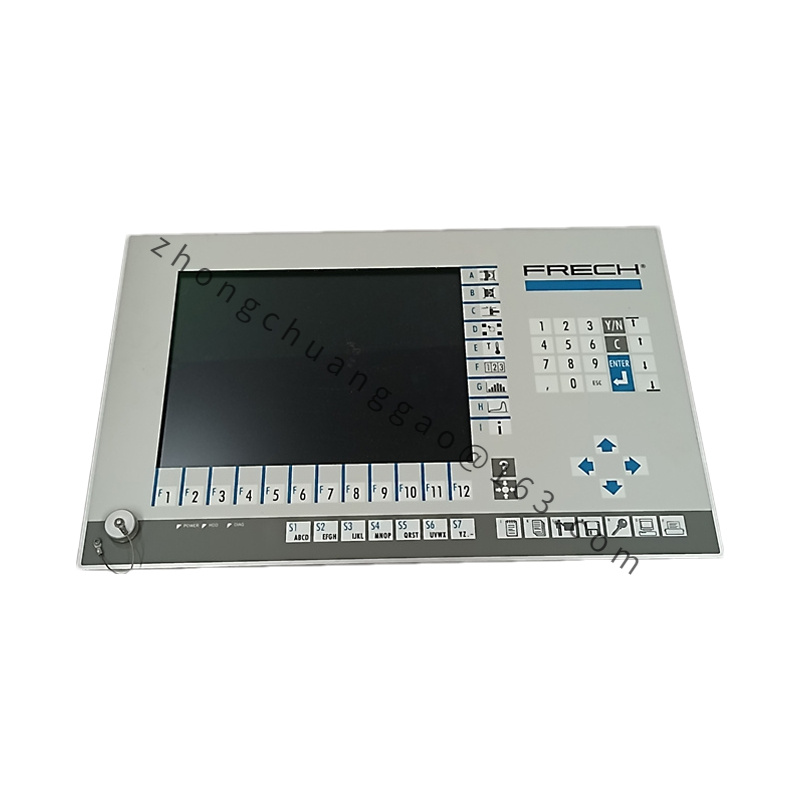

6. Display:
   • Type: Typically includes an industrial-grade touchscreen or interface for direct user interaction, although specific display details should be verified with the manufacturer.
7. Input/Output Ports:
   • Serial Ports: Multiple RS-232/RS-422/RS-485 ports for serial communication.
   • Ethernet Ports: Multiple Ethernet interfaces for network connectivity.
   • USB Ports: Multiple USB ports for peripheral connections.
   • Other I/O: May include additional ports such as VGA, audio, or digital I/O depending on the configuration.
8. Power Supply:
   • Voltage: Typically operates on 24V DC, but variations might be available.
9. Environmental Conditions:
   • Operating Temperature: Typically designed for industrial environments, with a range usually from -10°C to +60°C.
   • Relative Humidity: Designed to operate in environments with 5% to 95% non-condensing humidity.
10. Dimensions and Weight:
    • Size: Compact industrial form factor for mounting in control panels or enclosures.
    • Weight: Relatively lightweight to facilitate installation in tight spaces.

Features

1. High Performance:
   • Equipped with a powerful Intel Pentium III processor and 1 GB of RAM, ensuring robust performance for automation tasks.
2. Industrial Grade:
   • Built to withstand harsh industrial environments with features designed for durability and reliability.
3. Compact and Flexible:
   • Compact design allows for flexible installation in various control panels and enclosures.
4. Operating System:
   • Windows XP Embedded provides a stable and customizable operating system suitable for embedded industrial applications.
5. Storage:
   • Includes an 8 GB CompactFlash card, offering reliable and removable storage for system data and applications.
6. Connectivity:
   • Multiple I/O ports, including serial, Ethernet, and USB, facilitate communication with a range of industrial devices and networks.
7. User Interface:
   • Often equipped with an industrial-grade touchscreen or other user interface options for ease of operation and monitoring.

Applications

1. Industrial Automation:
   • Used as a central control unit in industrial automation systems, managing and monitoring various processes and equipment.
2. Process Control:
   • Suitable for controlling complex processes in manufacturing and production environments.
3. Data Acquisition:
   • Used for gathering and processing data from sensors and other input devices in industrial settings.
4. Machine Control:
   • Controls and interfaces with machinery and equipment, providing real-time feedback and control capabilities.
5. Building Automation:
   • Applied in building management systems for monitoring and controlling HVAC, lighting, and other building systems.
6. SCADA Systems:
   • Can be integrated into SCADA (Supervisory Control and Data Acquisition) systems for remote monitoring and control.

Additional Considerations

• Installation and Maintenance: Ensure proper installation according to manufacturer guidelines and perform regular maintenance to keep the system running smoothly.
• Technical Support: For detailed specifications, configuration assistance, and troubleshooting, refer to Bachmann’s official documentation or contact their technical support team.
