Voltage Supply:230-480V AC, 3-Phase

Input Frequency:47-63 Hz

Nominal Input Current:11 A (continuous), 22 A (intermittent)

Output Power:1.5 kW @ 230V AC, 3.0 kW @ 460V AC

Control Specifications:Space Vector Modulation (SVM), Digital PI Velocity Control, Digital PID Position Control

Shunt Resistance:40 Ohms

Weight:22.96 lbs

SERCOS Interface:Integrated for seamless integration with Allen-Bradley ControlLogix PAC and SOFTLogix controller platforms

Compatibility:Direct integration with Allen-Bradley Logix 5000 series controllers and interface modules

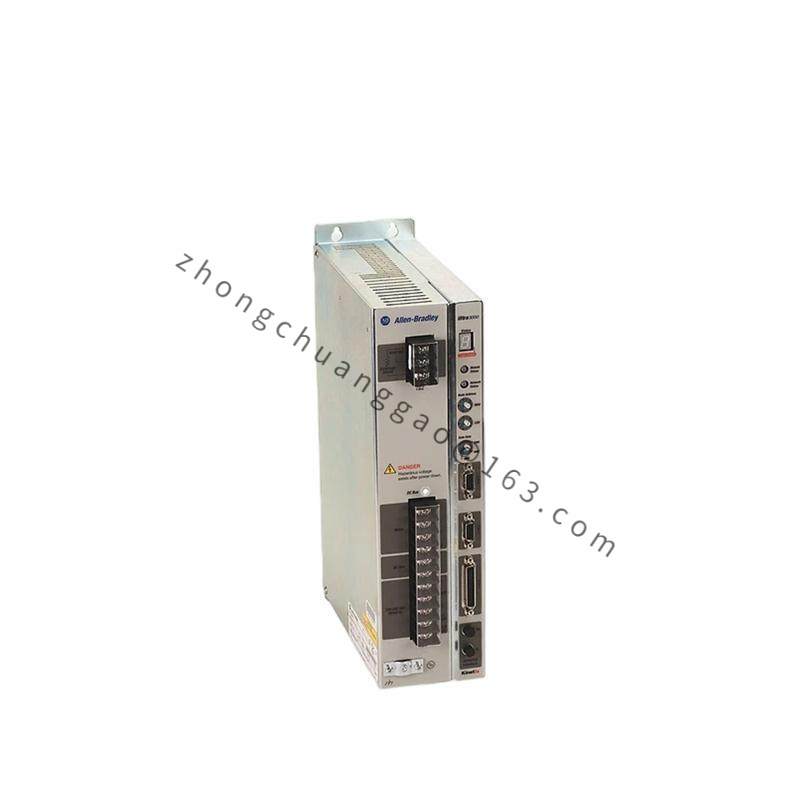

    Engineered for simplicity and efficiency, the Allen-Bradley 2098-DSD-HV150-SE SERCOS Servo Drive is a powerhouse for advanced motion control systems. Its compact design ensures easy integration into various industrial setups, enhancing productivity and performance.

    Featuring a dedicated slot for RS232 and RS485 with DeviceNet support, the drive seamlessly communicates with ControlLogix Programmable Automation Controllers (PAC) and SOFTLogix controllers, leveraging the Serial Real-Time Communication System (SERCOS) protocol for unparalleled control.

    With support for multi-turn absolute encoders, the drive ensures precise positioning and operation, enabling the delivery of external logic power and maintaining accuracy in demanding applications.

    Equipped with a 40 Ohm internal shunt resistance and auxiliary power supply, the 2098-DSD-HV150-SE is designed to withstand rigorous conditions without compromising on performance. Its robust construction and efficient power management make it a reliable choice for industrial environments.

    Weighing in at 22.96 pounds, the drive is lightweight yet sturdy, making it a practical solution for space-conscious industrial setups. Its comprehensive feature set, coupled with compatibility across multiple platforms, ensures that the Allen-Bradley 2098-DSD-HV150-SE SERCOS Servo Drive delivers exceptional motion control performance, setting new benchmarks in industrial automation.
