Operating Voltage (Nominal):360-480V

Input Frequency (Hz):47-63

Current Rating (Continuous):20.4A (rms)

Efficiency (%):98%

Short-Circuit Current Rating (rms):200,000A

Series Compatibility:A, B, C

Overload Support:Standard

Mounting Location:Leftmost side of the power rail

Temperature Range (°C):0…50

Relative Humidity (%):5…95% noncondensing

Altitude (m):Similar to other Kinetix modules

Vibration Range (Hz):5…55 @ 0.35 mm (0.014 in.) double amplitude

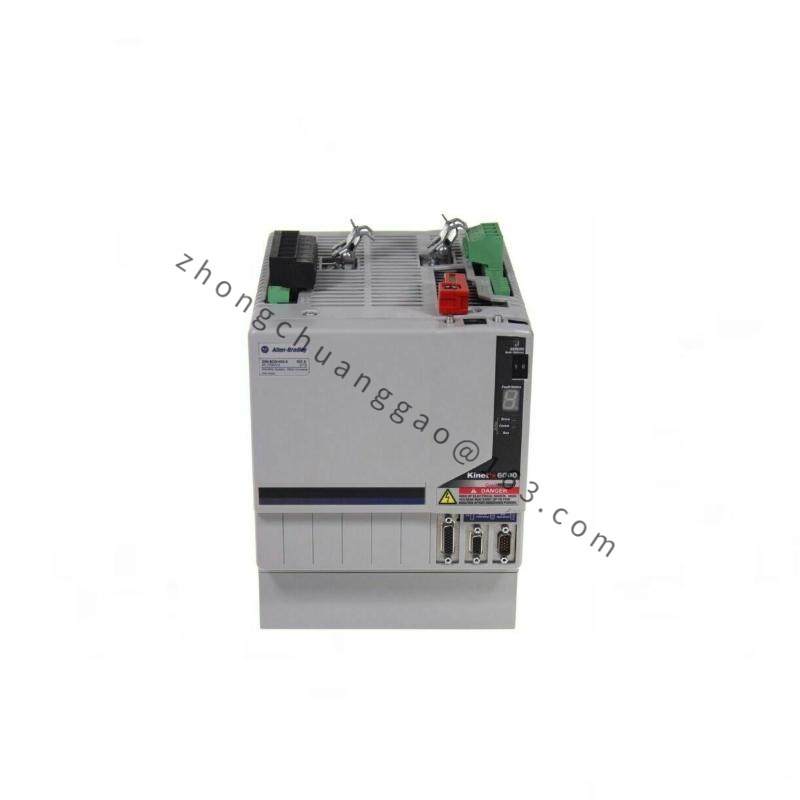

    Engineered for seamless integration with the Kinetix 6000 Drive family, the AB 2094-BC04-M03-M is a versatile module that supports a wide range of motor types, including rotary and linear configurations. Its high-efficiency design ensures minimal energy loss and optimal performance across various industrial applications.

    This integrated axis module boasts a comprehensive set of connectors, facilitating easy connection to input/output devices, auxiliary feedback systems, and motor feedback, streamlining system setup and enhancing operational flexibility.

    Featuring a robust design that withstands demanding environmental conditions, the AB 2094-BC04-M03-M is capable of handling high-frequency vibrations and extreme temperatures, ensuring reliable operation under diverse industrial settings.

    With its compatibility across different series (A, B, C) and standard or peak enhanced overload support, the module caters to a broad spectrum of control requirements, making it suitable for both moderate and high-demand applications.

    Incorporating advanced safety features such as the Safe Torque-off function, the AB 2094-BC04-M03-M significantly enhances system reliability and operator safety, offering peace of mind during operation and maintenance phases.
