Model Type:Bridge Module

Model Number:1756-CNB

Manufacturer:Allen Bradley

Communication Protocol:DeviceNet, ControlNet

Isolation:30 V (Continuous)

Amperage Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC

Temperature Range:-40°C to +70°C

Enclosure:Open Type

RfI Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80 – 2000 MHz

Conducted Emission:10 VRMS with 1 KHz sine-wave 80% AM from 150 kHz – 80 MHz

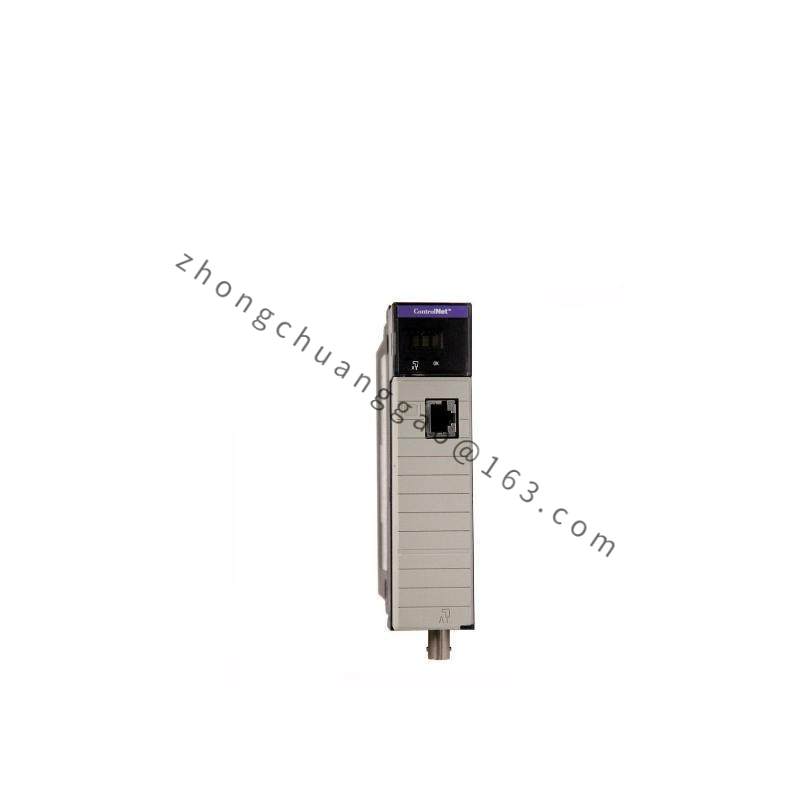

    The Allen Bradley AB 1756-CNBD ControlLogix Bridge Module is engineered to optimize industrial automation networks by providing robust DeviceNet communication capabilities. This module ensures reliable data transmission, enhancing system performance and efficiency.

    Featuring advanced isolation technology, the module guarantees protection against electromagnetic interference, ensuring stable operation in harsh industrial environments.

    With its redundant design, the AB 1756-CNBD provides fail-safe operation, critical for maintaining continuous process control and minimizing downtime in mission-critical applications.

    Designed for seamless integration, this module supports easy setup and configuration, making it an ideal choice for both new installations and system expansions.

    Built with Allen-Bradley‘s renowned quality and durability, the AB 1756-CNBD ControlLogix Bridge Module is compatible with a wide range of ControlLogix PLCs and DeviceNet devices, offering unparalleled flexibility and compatibility in industrial automation solutions.
