Input Voltage (AC):230 – 480 V rms, 3 phases

Input Frequency (AC):47 – 63 Hz

Nominal Input Current (AC):4 A

Output Voltage (AC):230 VAC / 460 VAC, 3 phases

Programmable Frequency Range:0-400 Hz

Maximum Continuous Output Current:7 A

Maximum Peak Output Current:14 A

Shunt Resistance:120 ohms

Shunt On Rating:800 V DC

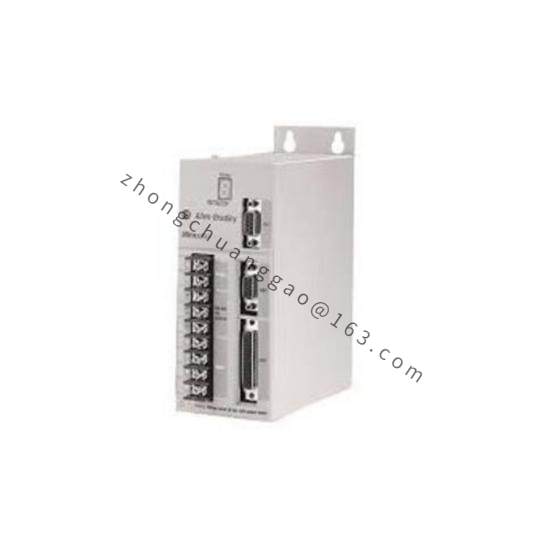

    The Allen-Bradley 2098-DSD-HV030-SE boasts advanced features for precise and reliable operation, making it an ideal choice for demanding industrial applications. Its robust design ensures long-lasting performance under challenging conditions.

    This digital servo motor is equipped with an internal shunt resistance of 120 ohms, enabling efficient current control. Its compatibility with multi-turn absolute encoders enhances its functionality, supporting external logic power and maintaining accuracy.

    With a wide input voltage range of 230 to 480 Vrms and 3-phase capabilities, the 2098-DSD-HV030-SE can operate in a variety of industrial settings. Its programmable frequency range from 0 to 400 Hz allows for flexible speed adjustments, optimizing performance across different tasks.

    The motor’s ability to handle maximum continuous output currents of 7 amperes and peak currents up to 14 amperes ensures it can deliver consistent torque and power to drive complex machinery or mechanisms.

    Designed for ease of integration, the 2098-DSD-HV030-SE seamlessly connects to various control systems via its support for standard communication protocols. This integration capability facilitates remote control and configuration, enhancing operational flexibility and efficiency.
