Nominal Supply Voltage:120VAC / 240VAC, 1-Phase, 50-60Hz

Input Current:18 Amps

Output Power:2kW

Bus Capacitance:1880 µF

Bus Overvoltage Protection:400V DC

Energy Absorption Capability:125 Joules @ 115VAC, 51 Joules @ 230VAC

Operating Temperature Range:40-70°C (-40-158°F)

Relative Humidity Limits:5-95% without condensation

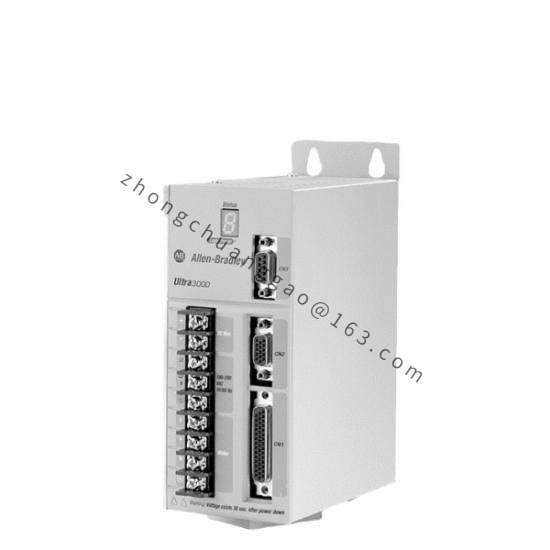

    The Allen-Bradley 2098-DSD-020X is engineered to deliver unparalleled performance in high-demand industrial settings. Its robust design ensures reliability and efficiency in applications requiring precise motion control and speed regulation.

    Featuring advanced Proportional+Integral+Derivative (PID) velocity regulation, this drive offers exceptional accuracy and responsiveness. The integrated Digital PID with feed-forward capability further enhances positioning precision.

    With 8 optically-isolated digital inputs and 4 optically-isolated outputs, the 2098-DSD-020X provides flexible connectivity options for various sensors and actuators. The N.O. relay outputs are rated for 30V DC with a maximum current of 1A, ensuring compatibility with a wide range of industrial components.

    This digital servo drive is equipped with a user-friendly interface for easy setup and configuration. The Allen-Bradley 2098-DSD-020X supports a variety of encoder types, including sine/cosine and incremental external encoders, enabling seamless integration into existing systems.

    Optimized for environments with fluctuating power conditions, the 2098-DSD-020X is built to withstand harsh industrial environments, making it an ideal choice for manufacturers seeking reliable motion control solutions. Its compact size and low weight make it easy to install and integrate into machinery.
