Nominal Input Voltage:650 Volts DC

Continuous Current (0 to peak):21.2 Amps

Internal Shunt Continuous Power:200 Watts

Efficiency:98%

Short-circuit Current Rating (rms):200,000 A

Symmetrical Current Capability:53.0 Amps

Output Frequency:Variable depending on demand

Dimensions:Specific to the rack it’s mounted on

Weight:7.0 lbs (3.18 kg)

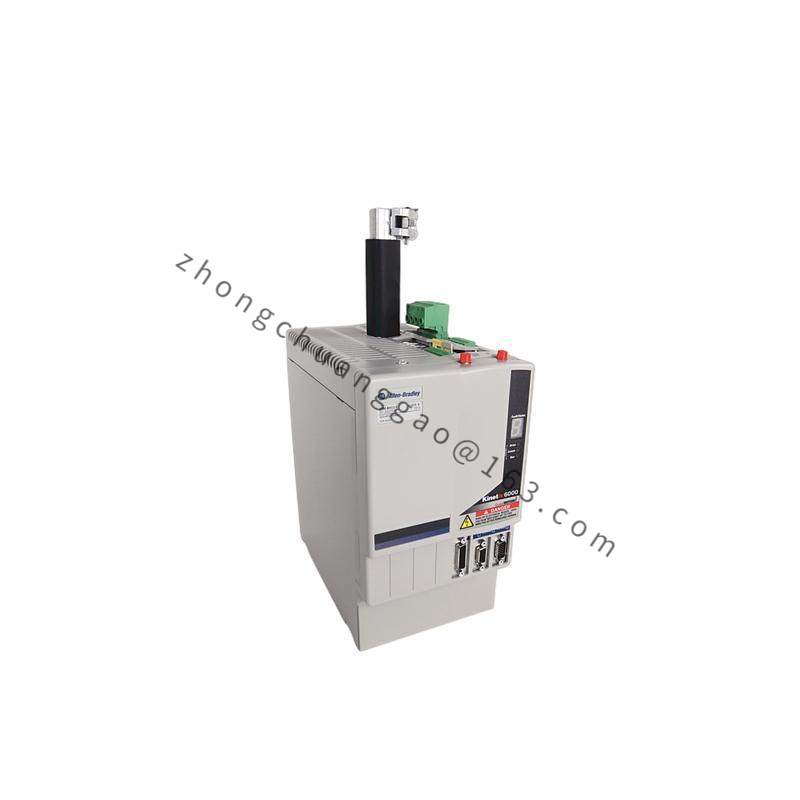

    The Allen-Bradley 2094-BM03-S Axis Module is a robust and efficient solution for driving high-power servo motors in complex industrial machinery. Designed for compatibility within the Kinetix 6000 system, this module seamlessly integrates with the control module, ensuring seamless communication and precise motor control.

    With a continuous current rating of 21.2 A and a peak current of 53.0 A, the module is capable of handling the most demanding loads, making it suitable for applications requiring high torque and speed precision. Its 98% efficiency ensures minimal energy loss during operation, contributing to overall system performance optimization.

    Featuring an integrated Safe Torque-off feature, the module provides enhanced safety measures by enabling the immediate disconnection of power to the motor when necessary, preventing accidental movements and safeguarding against potential hazards.

    Equipped with a 400 VAC input, the module is versatile enough to operate across a wide range of industrial settings. Its compact design allows for easy installation within the Kinetix 6000 rack, facilitating quick setup and integration.

    The Allen-Bradley 2094-BM03-S Axis Module supports a variety of motor interfaces, including rotary and linear motors, through its feedback cables. This flexibility enables the module to adapt to different application requirements, ensuring optimal performance across diverse machinery setups.
