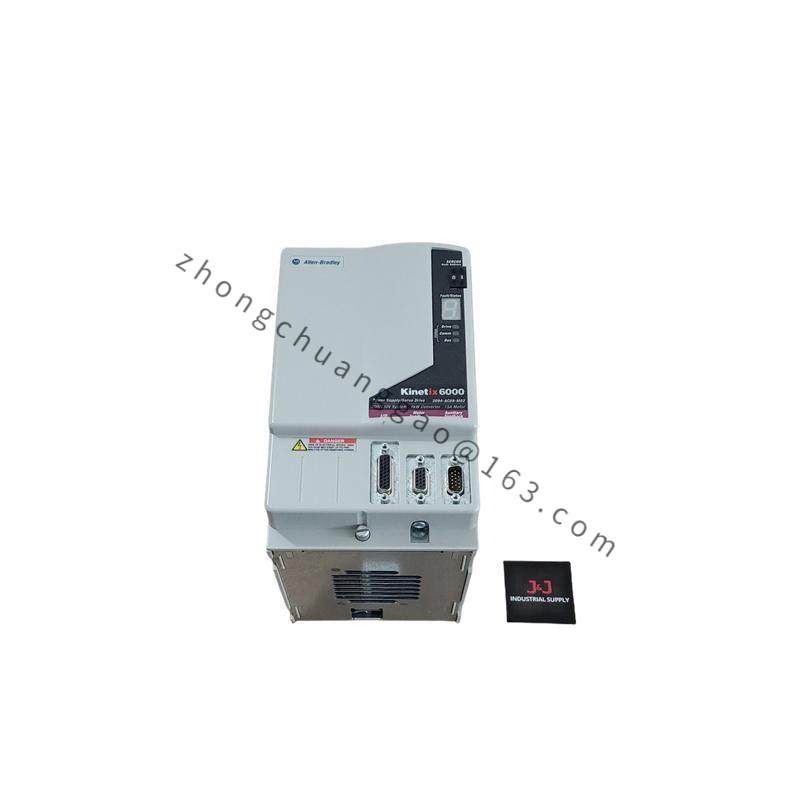

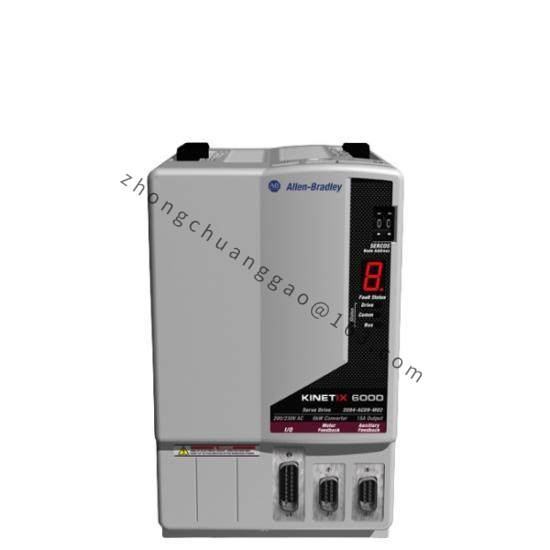

Allen-Bradley 2094-AC09-M02 Integrated Axis Module
The Allen-Bradley 2094-AC09-M02 is a high-performance Integrated Axis Module designed for advanced motion control applications within industrial automation systems. Featuring SERCOS and DPI connectivity, this module ensures efficient and reliable operation in complex manufacturing environments.
Detailed content
Weight:5.1 pounds (2.31 kilograms)
Power:12 kW
Efficiency:95%
Input Voltage Range:195-264 Volts RMS AC
Frequency Range:47-63 Hertz
DC Bus Output Voltage:325 Volts DC nominal
Line Loss Ride Through:20 milliseconds
Safe-Torque Off Functionality:ISO 13849-1 PLe/SIL3 certified
Connectivity:SERCOS and DPI protocols supported
Inverter Capacity:15 A
Converter Power:6 kW
I/O Connectors:Contactor enable, DC bus/AC input power, Control power, Motor power, Motor/resistive brake, I/O
The Allen-Bradley 2094-AC09-M02 is designed for use in the Kinetix 6000 series, making it a robust and reliable choice for your motion control needs.
Its integrated Safe-Torque Off (STO) function ensures enhanced safety and complies with stringent ISO standards.
With SERCOS and DPI connectivity, this module can be easily integrated into existing networks, providing seamless communication between devices.
The front panel is equipped with a variety of connectors to facilitate easy installation and maintenance.
Additionally, the 7-segment display provides real-time operational status updates, ensuring you have immediate access to critical information.
