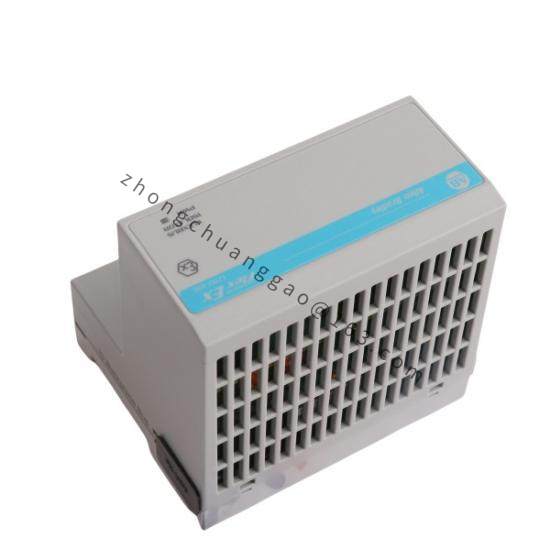

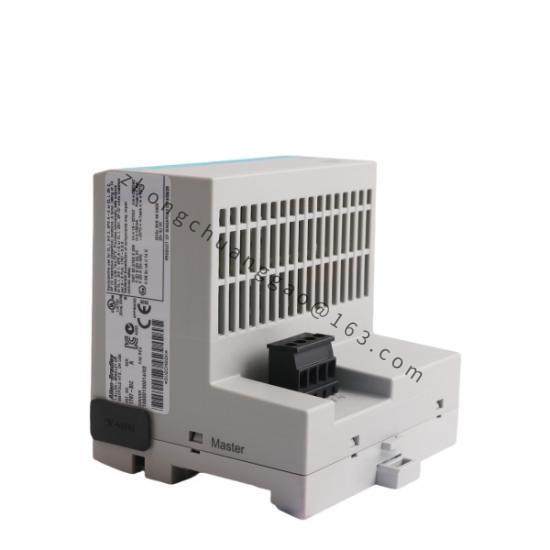

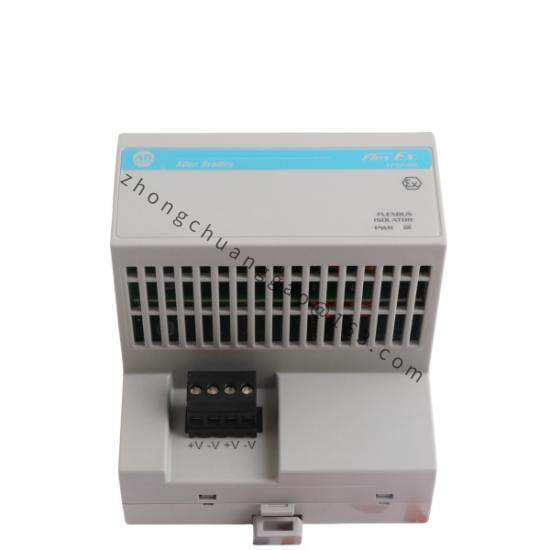

Allen-Bradley 1797-BIC Flex Bus Isolator Module, Advanced Industrial Control Solutions
The National Instruments 1797-BIC Flex Bus Isolator Module 1797BIC is designed for high-speed data transmission and signal isolation in industrial automation systems. It ensures reliable communication between different components by preventing signal ground loops and common mode noise.
Detailed content
Bus Isolation:High-efficiency bus isolation technology ensures signal integrity and prevents ground loops
Current Rating:Up to 20 mA current handling capacity
Voltage Range:Supports voltage up to 24 VDC
Power Consumption:Low power consumption of less than 500 mW
Operating Temperature:-40°C to +70°C
Enclosure Protection:IP20 rated for protection against non-hazardous dust
The Allen-Bradley 1797-BIC Flex Bus Isolator Module is engineered for seamless integration into Allen-Bradley‘s automation systems, providing superior signal integrity and reliability. It ensures high-speed, accurate data transfer on a Flexbus network, crucial for complex industrial control systems.
Featuring a compact design for easy DIN rail or panel mounting, this module supports a wide range of input signals, making it versatile for various applications in manufacturing, process control, and other industrial sectors.
With its low power consumption and robust enclosure, the 1797-BIC module is ideal for environments where space is limited and reliability is paramount. Its single-ended, non-isolated input design ensures compatibility with a broad spectrum of sensors and actuators.
Designed with safety in mind, the 1797-BIC module is suitable for industrial environments and meets stringent safety standards, ensuring that it can withstand the rigors of continuous operation in demanding conditions.
Installation and maintenance are straightforward due to the module’s intuitive design and Allen-Bradley‘s comprehensive support resources. It is part of a larger ecosystem of Allen-Bradley components, offering seamless integration and easy troubleshooting through Allen-Bradley‘s advanced diagnostic tools.
