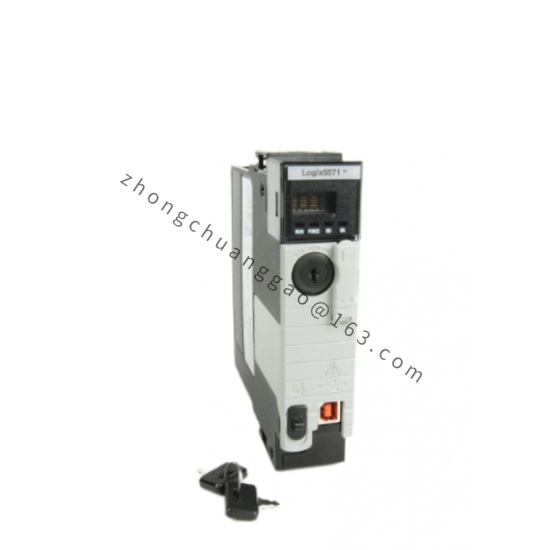

Allen Bradley 1756-L71/B ControlLogix Logix5571 Processor – Advanced Control System Core
The Allen Bradley 1756-L71/B ControlLogix Logix5571 Processor is a high-performance, modular control system core designed for efficient and precise automation tasks in industrial settings. Its robust design supports a wide range of applications from manufacturing to process control.
Detailed content
Model Number:1756-L71B
Manufacturer:Allen Bradley
Processor Type:ControlLogix Logix5571
User Memory:2 MB
Digital I/O:128,000
Analog I/O:4,000
Total I/O:128,000
Communication Interface:Built-in USB 2.0 Programming/Download Port
Safety Features:GuardLogix® Integrated Safety System Controller
Memory Capacity:[{“Memory Type”:”Main Memory”,”Capacity”:”0.98 MB”},{“Memory Type”:”Safety Memory”,”Capacity”:”4 MB”}]
Power Supply:1756-SD1 (1 GB) / 1756-SD2 (2 GB) Optional Non-Volatile Memory Storage
Mounting:Chassis
Isolation:30 V Continuous, Basic Insulation
RFI Suppression:Radiated: 10 V/M at 1 KHZ Sine-Wave 80% AM from 80 – 2000 MHZ
Enclosure:Open Type
Dimensions:Not specified
Weight:Not specified
The 1756-L71/B ControlLogix Logix5571 Processor stands at the forefront of industrial automation technology, offering unparalleled processing power and flexibility for complex control systems. This processor is designed to handle demanding applications, from manufacturing floors to process industries, ensuring high-speed data processing and reliable operation.
Featuring an impressive 120 MHz processor speed and 32 MB of RAM, it provides the computational capacity needed for sophisticated control algorithms and real-time data processing. The extensive I/O capability allows for integration with various sensors and actuators, making it adaptable to a wide range of automation needs.
Equipped with built-in 10/100 Base-T Ethernet, the 1756-L71/B supports advanced communication protocols such as EtherNet/IP, DeviceNet, and ControlNet, facilitating seamless integration with a variety of networked devices. Its compatibility with these protocols ensures enhanced connectivity and data exchange within the industrial environment.
The processor is designed with an IP20 enclosure, providing protection against dust and light splashes, suitable for many industrial environments. Its compact dimensions make it easy to integrate into existing control cabinets, while its lightweight design reduces installation and maintenance costs.
With a temperature range of -20°C to 60°C, the 1756-L71/B operates reliably in a wide range of environmental conditions, ensuring continuous performance under varying operational demands. This robustness, combined with its modular architecture, makes it an ideal choice for modern industrial automation solutions.
