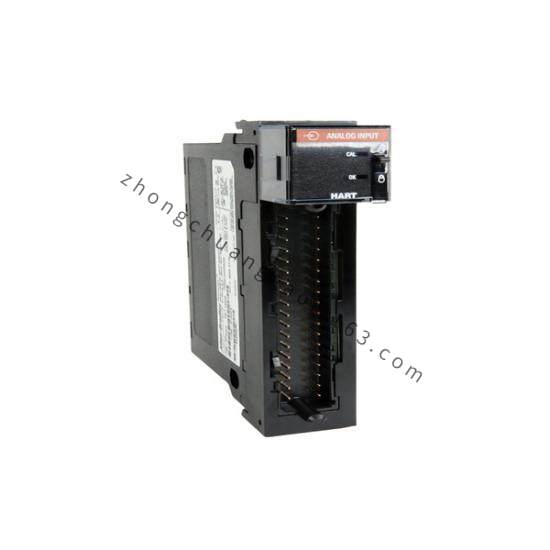

Allen-Bradley 1756-IF16H ControlLogix Analog Input Module: Precision Data Acquisition for Industrial Automation
The AB 1756-IF16H ControlLogix Analog Input Module is a critical component for integrating analog signals into the ControlLogix system, enabling precise monitoring and control of industrial processes.
Detailed content
Operating Voltage:DC 24V
Channels:16
Input Range:-10V to +10V
Accuracy:+/- 1% of full scale
Communication Interface:ControlLogix Ethernet/IP
Power Consumption:Less than 1W
Dimensions:2.7 x 5.2 x 1.7 inches
Weight:Approximately 0.3 lbs
The Allen-Bradley 1756-IF16H is engineered for seamless integration into complex industrial control systems, offering high accuracy and reliability in data acquisition.
Each channel is equipped with a robust filter, ensuring clean signal processing even under challenging environmental conditions.
With its versatile input range selection, this module caters to diverse applications requiring either differential voltage or current inputs.
Supporting multiple data formats, users can customize their system configuration to meet specific needs, enhancing flexibility and efficiency.
Equipped with an Ethernet/IP Bridge, the module facilitates fast and reliable communication, optimizing data flow within industrial networks.
Designed for durability, the open-type enclosure ensures longevity in harsh industrial settings, while the continuous isolation voltage safeguards against electrical interference.
