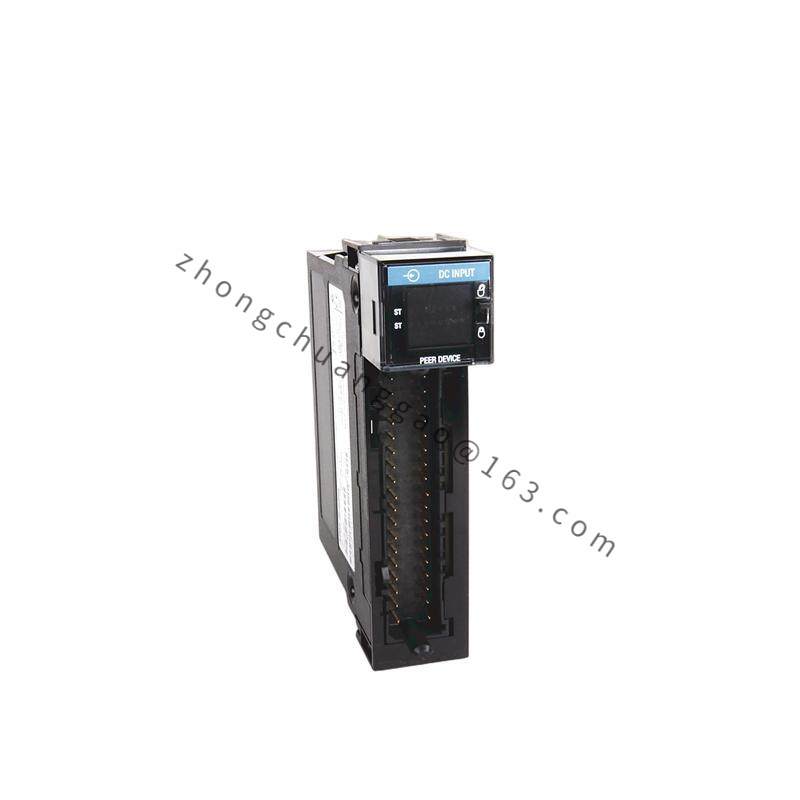

Allen Bradley 1756-IB16 Input Module: ControlLogix, 16-Point Digital Input, DC Voltage, 24V DC Source
The Allen Bradley 1756-IB16 Input Module is a high-performance digital input module designed for use in ControlLogix systems. It offers 16 discrete inputs, operates on 24V DC power, and supports voltage ranges from 10 to 31V DC, making it ideal for industrial automation applications requiring precise and reliable signal detection.
Detailed content
Model Number:1756-IB16
Module Type:Discrete Input
Communication Type:Digital
Number of Inputs:16 Points
Voltage Category:24V DC
Operating Voltage Range:10-31V DC
Current per Point:Up to 0.5A @ 60°C, 1.0A @ 30°C
Power Supply:24V DC
Bus Current Draw, Max:200mA
Mounting:DIN Rail or Panel Mount
The Allen Bradley 1756-IB16 Input Module is a critical component in automation systems, providing robust and accurate data input from various sensors and switches.
Engineered with advanced technology, this module ensures precise signal processing and efficient communication within ControlLogix systems, enhancing system reliability and operational efficiency.
Featuring a compact and durable design, the 1756-IB16 is compatible with a wide range of applications, making it an ideal choice for industries requiring high-speed data acquisition.
With its high input capacity and wide voltage range, this module can withstand varying environmental conditions, ensuring continuous operation under diverse industrial settings.
Easy to install and integrate, the Allen Bradley 1756-IB16 Input Module supports seamless setup processes, minimizing downtime and simplifying system maintenance.
