Model Type:Communication Bridge Module

Model Number:1756-ENBT/A

Manufacturer:Allen Bradley

Communication Protocol:Ethernet/IP

Enclosure Type:Open

Connection Compatibility:802.3 compliant shielded or unshielded twisted pair cables

Temperature Range:0 – 60 °C

Power Dissipation:5.1 W

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface Type:Ethernet

USB Port:N/A

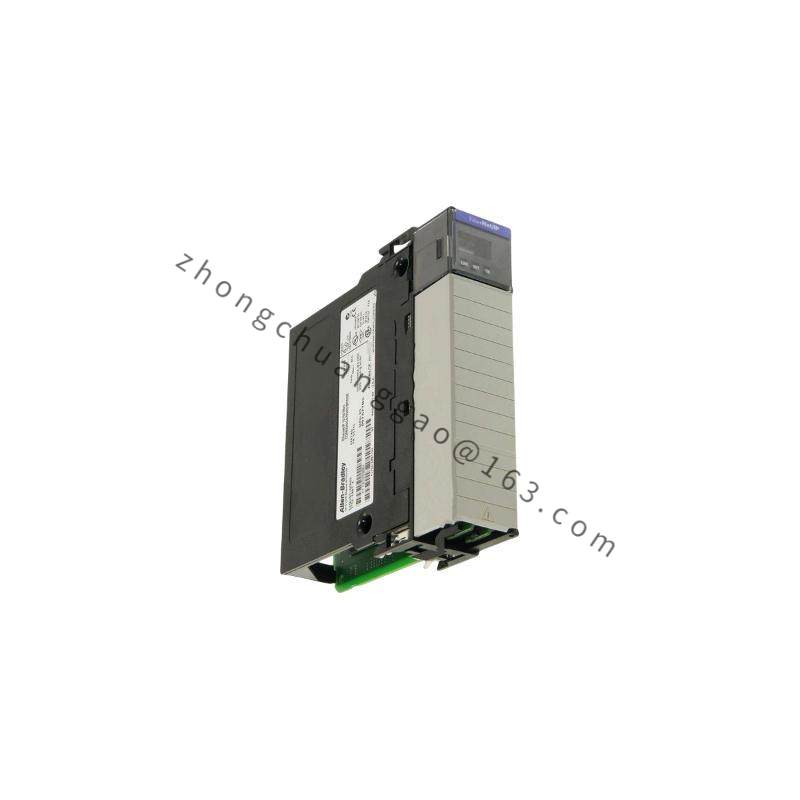

    Engineered for high-capacity industrial applications, the 1756-ENBT/A Ethernet/IP Communication Bridge Module from Allen Bradley provides a robust solution for expanding your control system’s network connectivity.

    With its Ethernet interface, this module facilitates efficient communication between different components of your automation system, enabling seamless data exchange and improved operational efficiency.

    Featuring a chassis mounting design, this module is versatile and can be easily integrated into various industrial environments, ensuring compatibility with a wide range of control systems.

    Equipped with 10/100 Mbps communication speed and Ethernet/IP protocol, it ensures reliable and fast data transfer, critical for real-time operations in manufacturing and automation sectors.

    Designed with environmental considerations in mind, the module operates within a temperature range of 0 – 60 °C and withstands high levels of vibration and shock, making it suitable for demanding industrial conditions.

    For enhanced security and reliability, the module includes continuous isolation up to 30 V, along with compliance with IEEE 802.3 standards for cable usage, ensuring a stable and secure network connection.
