Model Type:ControlLogix Communication Module

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure:Open Type

Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:Not Equipped

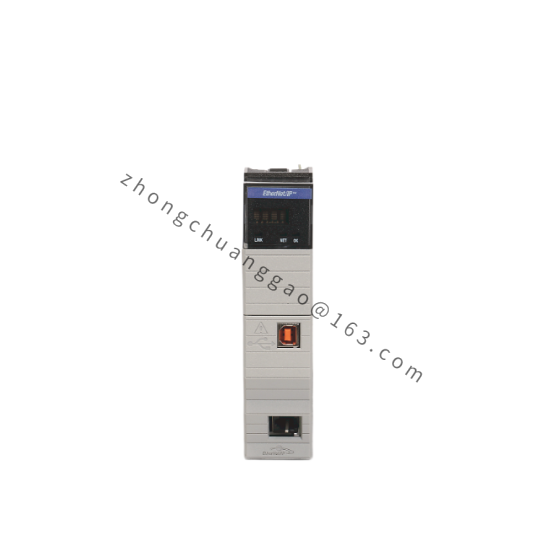

    The 1756-EN2T Bridge Module is an advanced interface solution that bridges the gap between different industrial control systems, ensuring smooth operation and enhanced productivity.

    Crafted with precision, this module supports a wide range of communication protocols, including MODBUS, making it compatible with AB’s ControlLogix, CompactLogix, and other PLCs.

    Equipped with two channels, the 1756-EN2T enables efficient data transfer rates up to 1 Mbps, facilitating real-time communication and control.

    Its robust design ensures reliability and durability, withstanding harsh industrial environments while consuming a low power of 15 W.

    Designed for easy integration, the module features a compact size of 100 x 100 x 30 mm and weighs only 0.3 kg, making it a space-efficient addition to any industrial setup.

    Backed by comprehensive safety certifications from UL, CE, and CSA, the 1756-EN2T Bridge Module ensures operational safety and compliance with international standards.
