Communication Protocol:Ethernet/IP

Power Supply:3 MA at 24 VDC

Mounting Style:Chassis

Communication Speed:10/100 MBPS

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

Enclosure Type:Open Type

Connection Compatibility:802.3 compliant shielded or unshielded twisted pair cables

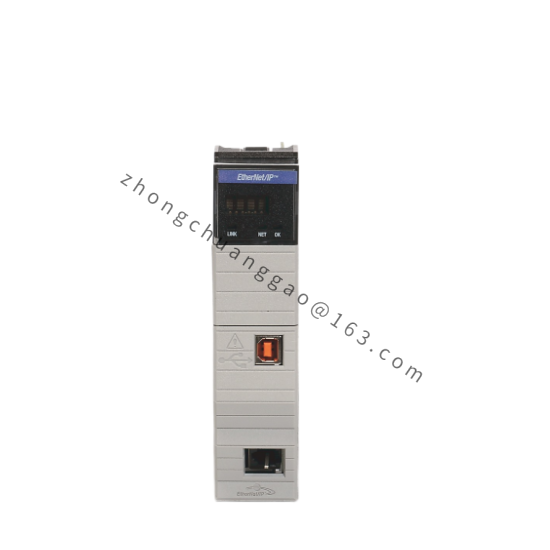

    The Allen-Bradley 1756-EN2T ControlLogix Bridge Module is engineered for high performance and reliability in industrial automation systems. It seamlessly integrates ControlLogix PLCs with Ethernet/IP networks, ensuring smooth communication and data transfer.

    Featuring eight motion axes support, this module optimizes complex automation tasks, making it ideal for applications requiring precise control over motors and machinery.

    With 128 TCP/IP connections and 256 CIP connections, the 1756-EN2T provides ample network capacity for large-scale operations, enhancing scalability and system flexibility.

    The robust RJ45 copper connector ensures stable connectivity, while the aluminum material offers durability and resistance against harsh industrial environments.

    Designed for optimal performance within a wide temperature range (-10°C to +60°C), this module can withstand challenging conditions, ensuring continuous operation even in extreme environments.

    Certified to CE, UL, and CSA standards, the Allen-Bradley 1756-EN2T meets international safety and quality benchmarks, providing peace of mind for users.
