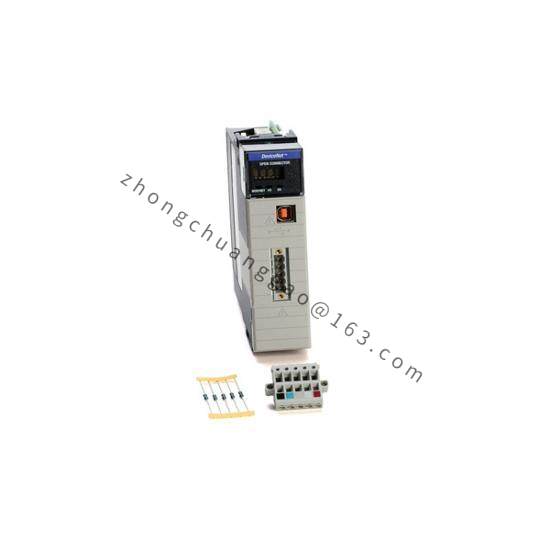

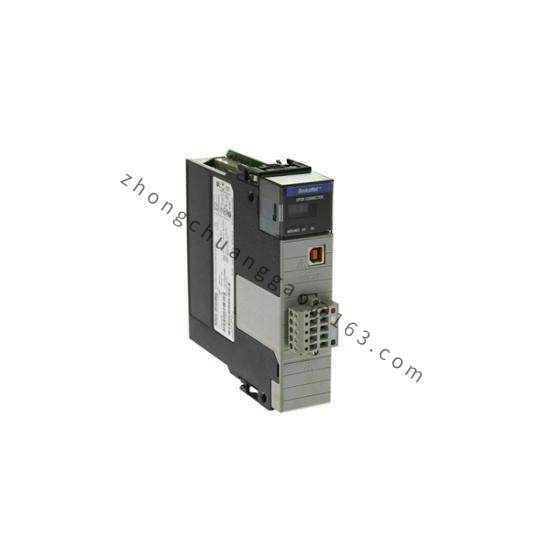

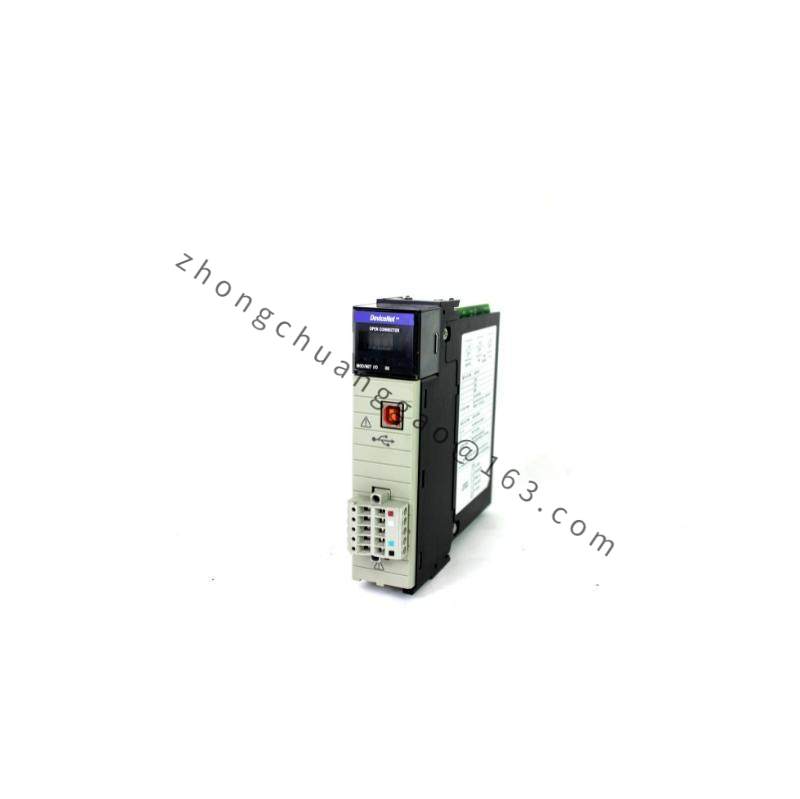

Allen Bradley 1756-DNB DeviceNet Bridge Module
The Allen Bradley 1756-DNB DeviceNet Bridge Module enables seamless communication between DeviceNet networks and ControlLogix systems using the Common Industrial Protocol (CIP). It ensures reliable data transfer and integration within industrial automation environments.
Detailed content
Brand:Allen Bradley
Model:1756-DNB
Communication Protocol:Common Industrial Protocol (CIP)
Interface:DeviceNet
Operating Voltage:24 VDC
Data Rate:500 kbps
Power Consumption:2 W
Environmental Rating:NEMA 6P/IP66
Operating Temperature Range:-40°C to +85°C
Storage Temperature Range:-40°C to +85°C
Dimensions:170 mm x 100 mm x 50 mm
Weight:1 kg
The Allen Bradley 1756-DNB DeviceNet Bridge Module is an essential component for integrating ControlLogix systems with DeviceNet networks.
Designed for industrial automation environments, this bridge module supports the Common Industrial Protocol (CIP) to facilitate efficient data transfer.
It enables real-time communication and seamless integration, making it ideal for manufacturing processes where reliable and fast data exchange is critical.
The module features robust design parameters suitable for harsh industrial conditions, including a wide operating temperature range from -40°C to +85°C and high humidity tolerance up to 95%.
Its compact dimensions and lightweight design make it easy to install in tight spaces.
Additionally, the module’s compatibility with DeviceNet networks ensures that users can leverage existing infrastructure while enhancing their system’s capabilities with advanced ControlLogix functionalities.
