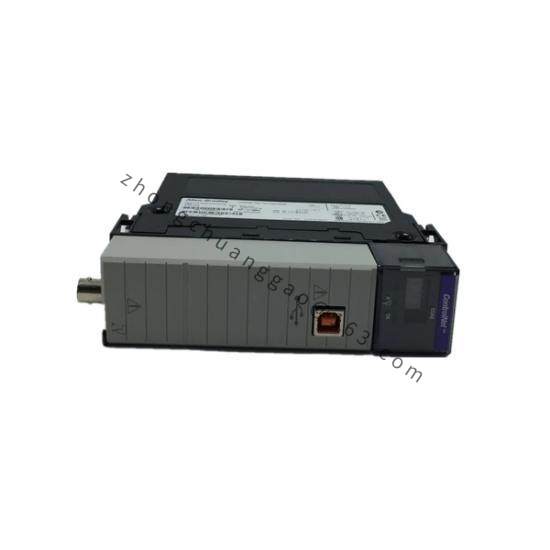

Allen Bradley 1756-CN2/B ControlNet Dual Capacity Bridge Module, Industrial Automation Solutions
The Allen Bradley 1756-CN2/B ControlNet Dual Capacity Bridge Module serves as a robust, high-speed communication interface for ControlLogix systems, enabling seamless integration between ControlNet and Ethernet/IP networks.
Detailed content
Communication Protocol:ControlNet
Capacity:Dual
Mounting:Chassis
Power Supply:5.1 W
Environmental Conditions:0 – 60 DEG C
RFI Suppression:Radiated: 10 V/M @ 80% AM, 1 KHZ Sine-Wave, 200 HZ Pulse
Conducted: 10 VRMS @ 1 KHZ Sine-Wave, 150 KHZ – 80 MHZ
Vibration Resistance:2 G
Shock Resistance:30 G
Enclosure Type:Open
Temperature Rating:0 – 60 DEG C
Isolation:30 V Continuous
The AB 1756-CN2/B ControlNet Dual Capacity Bridge Module is engineered to meet the stringent demands of industrial automation environments, offering unparalleled reliability and performance. Its dual capacity bridge capability allows for efficient data exchange between two ControlNet networks, optimizing network utilization and reducing the need for redundant hardware.
Featuring a wide operational temperature range from -40°C to 85°C, this module ensures continuous operation under harsh environmental conditions, making it suitable for applications in extreme climates. Additionally, its robust design withstands shock and vibration, ensuring stable communication even in dynamic industrial settings.
Compliant with Common Industrial Protocol (CIP), the AB 1756-CN2/B seamlessly integrates with various industrial control systems, enhancing compatibility and ease of use. This feature enables a quick and straightforward setup process, reducing installation time and costs.
Built with high-quality materials, the module is designed for long-term durability and maintenance-free operation, minimizing downtime and reducing maintenance expenses. The use of advanced semiconductor technology ensures low power consumption and efficient heat dissipation, contributing to overall system efficiency and cost-effectiveness.
Designed with user-friendliness in mind, the AB 1756-CN2/B ControlNet Dual Capacity Bridge Module comes equipped with comprehensive documentation and intuitive diagnostics tools, facilitating easy troubleshooting and configuration. Its compatibility with a wide range of software and hardware components makes it a versatile choice for various industrial automation projects.
