Operating System:ControlLogix PLC

Processor Speed:600 MHz

Number of I/O Channels:8 Analog Input

Max Output Current:20 A

Max PWM Frequency:20 kHz

Communication Ports:2 RS-485/RS-232

Power Supply Range:12-48 VDC

Dimensions:172.8 mm x 133.3 mm

Weight:240 g

Temperature Range:-20°C to +60°C

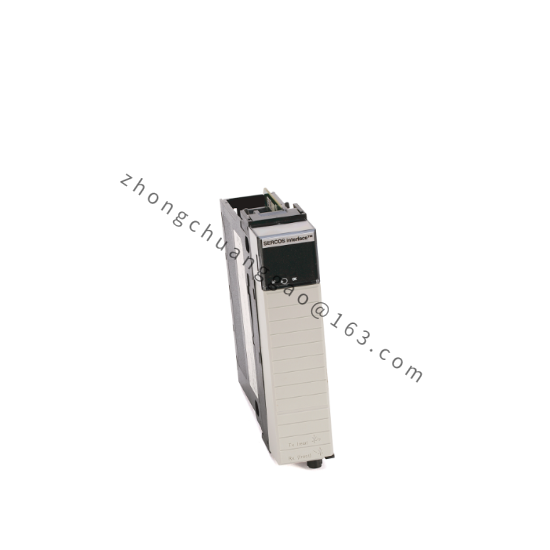

    The Allen Bradley 1756-M08SE ControlLogix Servo Module is engineered for unparalleled precision and reliability, making it an ideal choice for demanding motion control tasks. This module is part of the renowned ControlLogix family, known for its flexibility and robustness in industrial automation environments.

    Featuring 8 axes per module, the 1756-M08SE offers exceptional versatility, capable of handling a wide range of motion control scenarios. Its compatibility with both ControlNet™ and EtherNet/IP™ networks ensures seamless integration into existing or future network architectures, facilitating efficient data exchange and control over various industrial processes.

    Designed for use in a ControlLogix chassis, this servo module supports both removable terminal blocks (RTB) and a Bulletin 1492 wiring interface module (IFM), providing flexible connectivity options. It includes advanced diagnostic features that monitor system health and performance in real-time, enabling proactive maintenance and minimizing downtime.

    The 1756-M08SE operates within a temperature range of -20°C to +60°C, ensuring stable performance in a variety of industrial settings. With its efficient power consumption tailored to specific operational needs, this module optimizes energy use without compromising on performance.

    Backed by Allen-Bradley‘s commitment to quality and customer support, the 1756-M08SE is supported by extensive documentation, training resources, and a responsive technical assistance team. This ensures easy integration, streamlined operation, and quick troubleshooting, making it an accessible choice for both experienced engineers and those new to the field of industrial automation.
