Model Type:ControlLogix

Model Number:1756-IF8H

Manufacturer:Allen-Bradley

Weight:1.00 lbs

I/O Module Type:Analog Hart Interface

Input Channels:8

Differential Voltage or Current:Yes

Data Formats:Choice of three

Input Ranges:Multiple current and voltage

Module Filter:Yes

Real-time Sampling:Yes

Alarm Features:Under range and over range, process, rate, wire-off detection

Communication:Highway addressable remote transducer (HART)

Sampling Frequency:Not specified

Power Supply:Not specified

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure Type:Open Type

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not specified

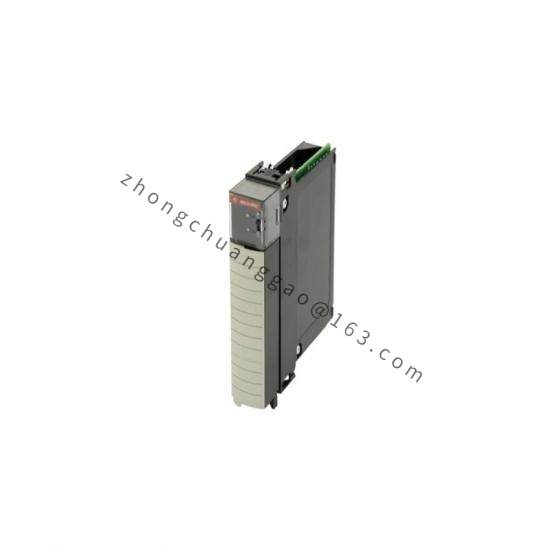

    Unleash the power of precision control with the Allen-Bradley 1756-IF8 ControlLogix Analog I/O Modules, tailored for seamless integration into complex industrial systems. This module boasts an impressive array of features, including eight channels for differential voltage or current inputs, providing unparalleled flexibility for diverse application requirements.

    Equipped with advanced filtering technology and real-time sampling capabilities, this module ensures accurate and responsive data acquisition. It supports multiple input ranges, allowing for precise tuning to meet the specific demands of your operation.

    With its choice of three data formats, the 1756-IF8 module caters to a wide range of protocols, ensuring compatibility and efficiency across different systems. The inclusion of HART communication enables easy setup and configuration, making it a versatile choice for both new installations and retrofit scenarios.

    Safety and reliability are paramount in industrial environments, which is why the 1756-IF8 module comes with robust fault detection features. It monitors under range and over range conditions, as well as wire-off detection, safeguarding your system against potential failures.

    This module is not just about functionality; it’s about enhancing productivity and efficiency. By offering direct connectivity and rack-optimized designs, the Allen-Bradley 1756-IF8 ensures a streamlined installation process, reducing downtime and maintenance efforts.
