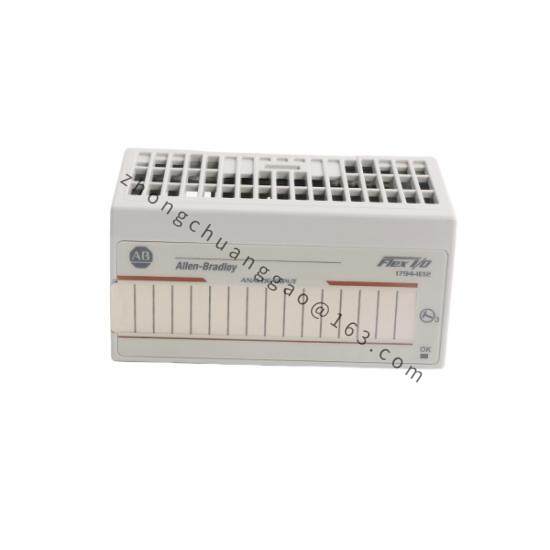

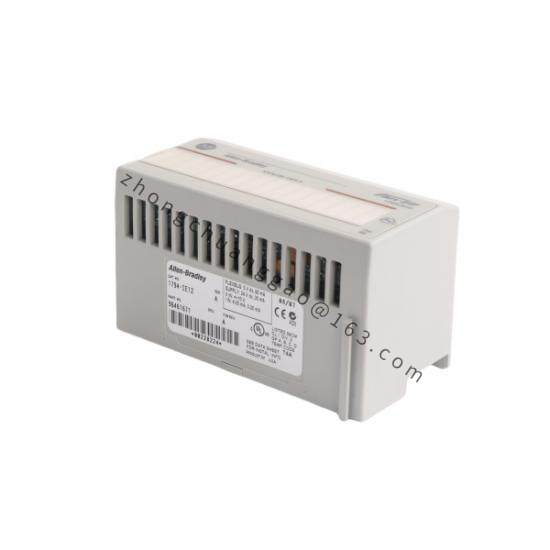

Advanced 12-Point Analog Input Module | Efficient Data Acquisition for Industrial Automation
The 1794-IE12 from Rockwell Automation is an essential component for industrial control systems, designed for high-speed, accurate data acquisition. This 12-point analog input module is specifically tailored for environments requiring precise measurement and control.
Detailed content
Model Number:1794-IE12
Number of Channels:12
Input Voltage Range:Less than 23.7 V
Input Current Range:Less than 93.5 mA
Power Consumption:7.5 W
Enclosure Protection:IP20
Connection Type:Stranded copper wire
Mounting Options:[“DIN Rail”,”Panel”]
The 1794-IE12 module is a high-performance addition to any industrial automation setup, offering unparalleled accuracy and reliability in data collection. Its robust design ensures it operates effectively across a wide range of temperatures, making it suitable for harsh industrial environments.
With its flexible communication interface, this module can easily connect to other devices in your system via DeviceNet or RS-485, facilitating seamless integration and data exchange within complex control networks.
Each of the 12 inputs supports voltage or current signals, allowing for diverse measurement applications from temperature sensing to flow rate monitoring, ensuring compatibility with a broad spectrum of industrial sensors.
Equipped with an advanced sampling rate of 500Hz, the 1794-IE12 provides real-time data acquisition, crucial for precise control and efficient operation in dynamic processes.
Featuring a compact yet rugged panel mount design, this module is easy to install and integrate into existing control panels, enhancing the overall efficiency and scalability of your automation system.
