Operating Temperature Range:-40°C to +70°C

Data Acquisition Rate:Up to 100 kS/s

Number of Analog Inputs:16

Analog Input Resolution:16-bit

Digital Input Channels:2

Digital Output Channels:4

Power Supply Voltage:5V ±10%

Data Transfer Protocol:USB 2.0 Full Speed

Dimensions (WxHxD):120mm x 135mm x 44mm

Weight:0.5kg

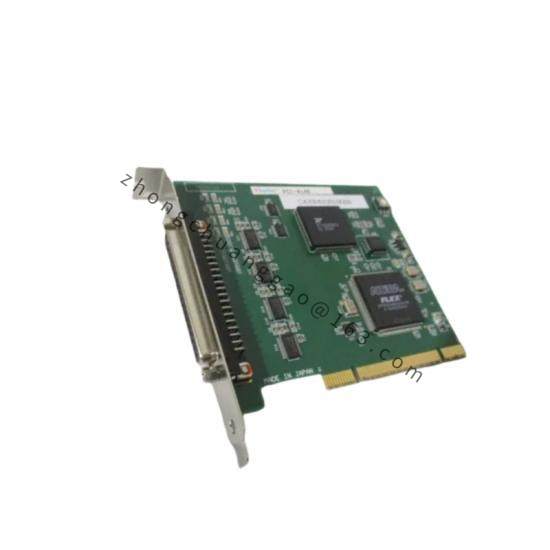

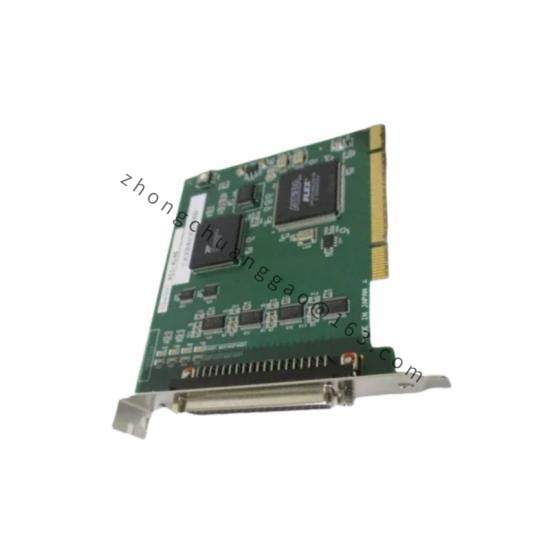

    The PCI-4146 INTERFACE is engineered with state-of-the-art technology, offering unparalleled performance in data acquisition. This module is specifically designed for applications requiring high-speed data capture and analysis, making it ideal for industries such as aerospace, automotive, and manufacturing.

    With its 16 analog input channels, the PCI-4146 can handle a wide range of sensor inputs, from temperature to pressure measurements, ensuring comprehensive monitoring capabilities. Its robust digital input channels allow for precise control over external devices, enhancing system integration.

    Featuring an exceptional sampling rate of up to 1 Ms/s, this module is capable of capturing rapid changes in signal patterns without loss of detail. This precision is critical in applications where real-time response is necessary, such as in high-frequency signal analysis.

    The PCI-4146 is built to withstand extreme environmental conditions, operating within a temperature range from -40°C to +70°C. This durability ensures reliable operation in diverse industrial settings, from cold storage facilities to hot manufacturing plants.

    Equipped with a versatile power supply of 9 to 36V DC, the PCI-4146 provides flexibility in installation scenarios, accommodating various power sources without compromising performance. Its PCIe form factor makes integration seamless into modern computing systems, facilitating quick deployment and easy upgrade paths.
