Motor Compatibility:Supports a wide range of servo motors

Operating Voltage:24-48V DC

Output Current:Up to 16A

Communication Interface:RS-485 Modbus

Max. Acceleration:0.01-100 rad/s^2

Protection Class:IP20

Operating Temperature:-10°C to +50°C

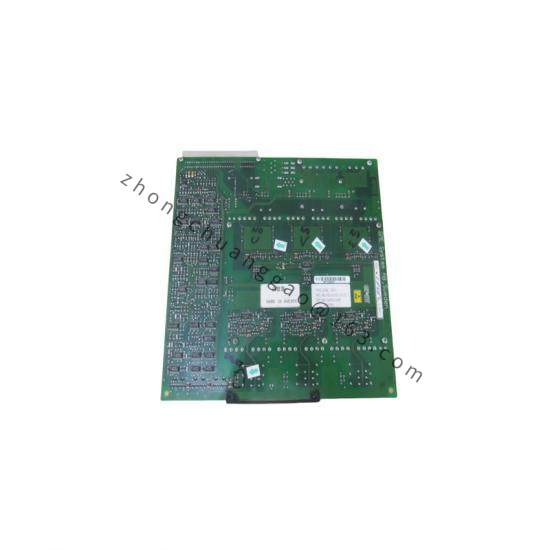

    The ABB YB560103-CD/26 Industrial Servo Axis Drive Unit is an exceptional choice for applications requiring high precision and reliability. This unit is meticulously designed with an advanced control algorithm that ensures smooth transitions and minimal overshoots, making it ideal for applications in textile, printing, rubber, plastics, and woodworking industries.

    Featuring an exceptionally compact design, this drive unit minimizes the space requirement on your production line without compromising on performance. Its uniform design facilitates quick commissioning, reducing setup time significantly. The included application macros and panel assistants simplify the configuration process, allowing for rapid integration into existing systems.

    Safety is paramount in industrial environments, and the ABB YB560103-CD/26 Drive Unit comes equipped with a Safe Torque Off (STO) function as standard, adhering to SIL3 standards. This feature ensures immediate shutdown in case of an emergency, safeguarding operators and machinery.

    Utilizing sensorless vector control technology, this drive unit supports both induction motors and permanent magnet motors up to 599 Hz, providing versatile control options. Additionally, it includes a built-in braking chopper, ensuring precise deceleration and smooth stoppage of the motor, which is crucial for maintaining product quality and operator safety.

    For harsh environmental conditions or specific applications like solar pump drives, ABB offers an IP66 product variant of the YB560103-CD/26 Drive Unit. This variant is designed to withstand extreme weather conditions, ensuring reliable operation in outdoor or dusty environments.

    Incorporating cutting-edge technology and engineered for longevity, the ABB YB560103-CD/26 Industrial Servo Axis Drive Unit is a robust solution for your automation needs. Whether you’re looking to enhance productivity, improve product quality, or reduce operational costs, this drive unit is designed to deliver exceptional performance.
