1、 Technical specifications
Processor and Storage: This module is equipped with a 32-bit ARM Cortex-M3 processor, as well as 2 GB DDR3 RAM and 128 MB flash memory, ensuring powerful processing performance and ample storage space.
Interface and Communication: It has multiple input and output interfaces, including Ethernet, CAN, RS-485, etc., to meet different communication needs.
Environmental adaptability: Designed for operation in harsh environments, with a temperature range of -40 to 70 degrees Celsius and an operating height of up to 4000 meters, it demonstrates excellent environmental adaptability.
2、 Functional Features

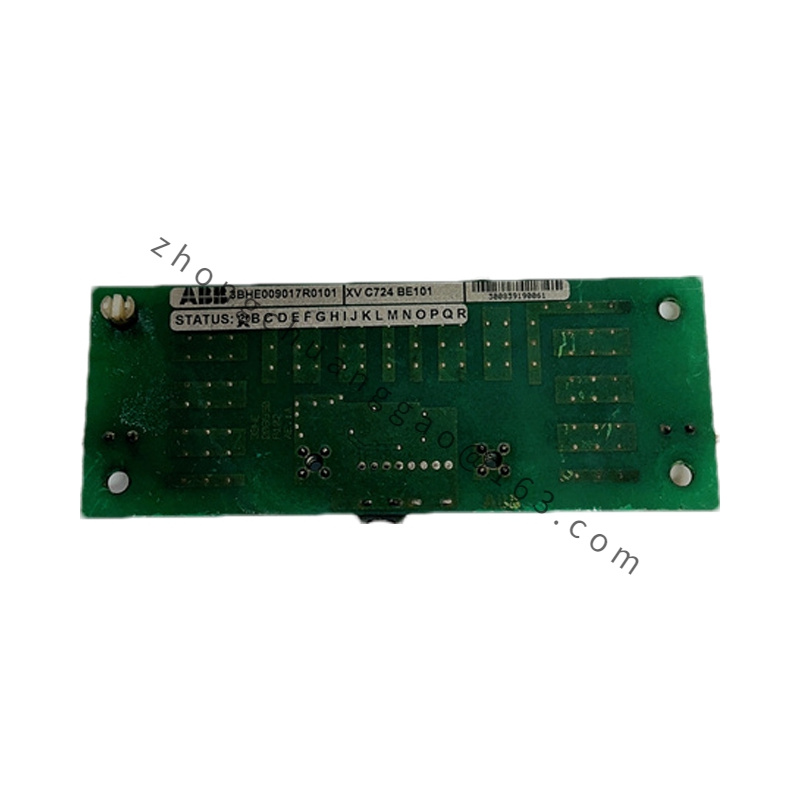

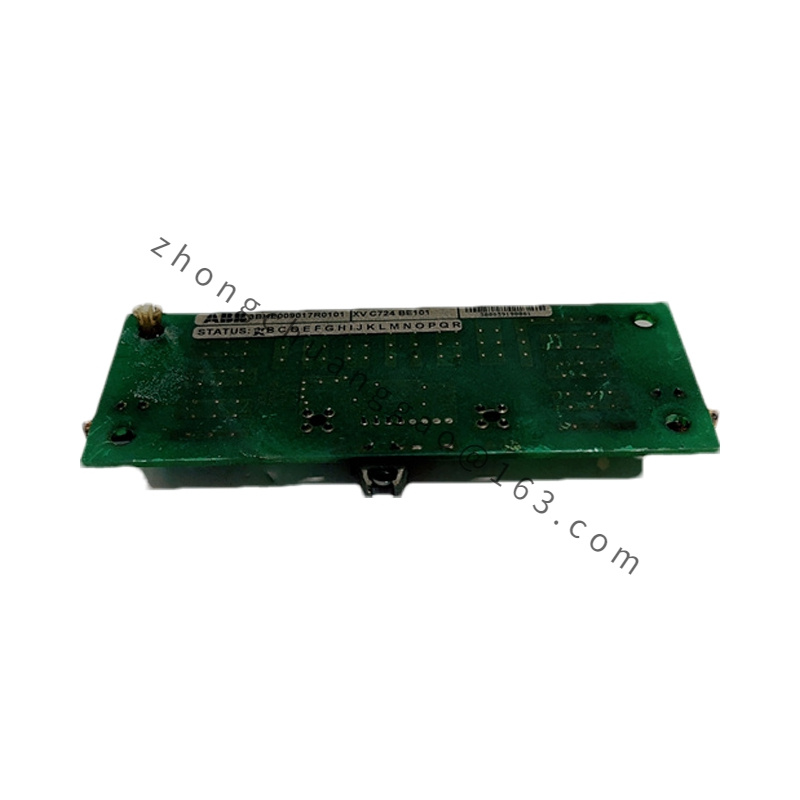

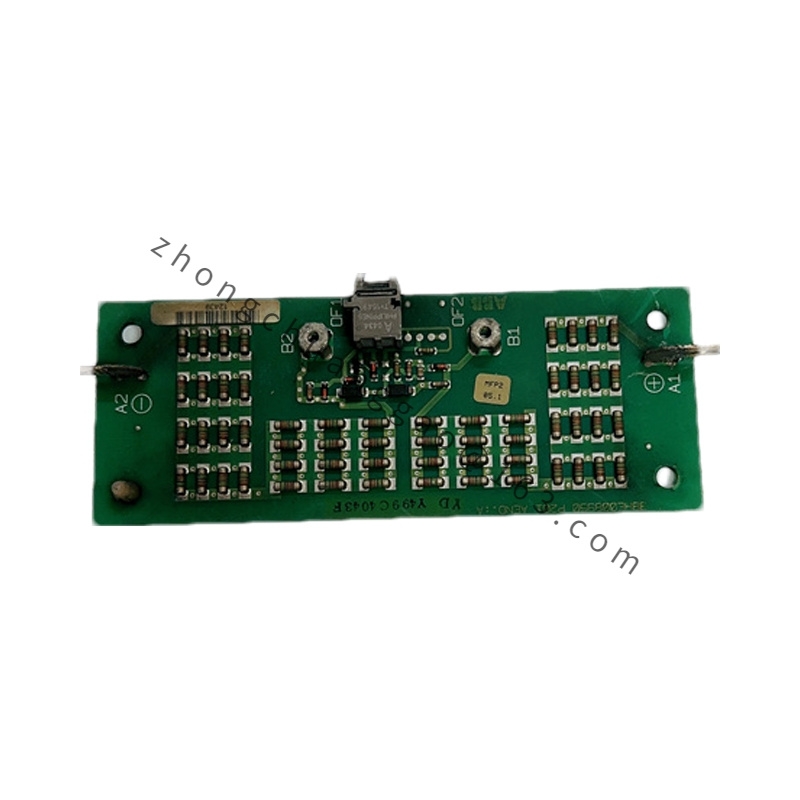

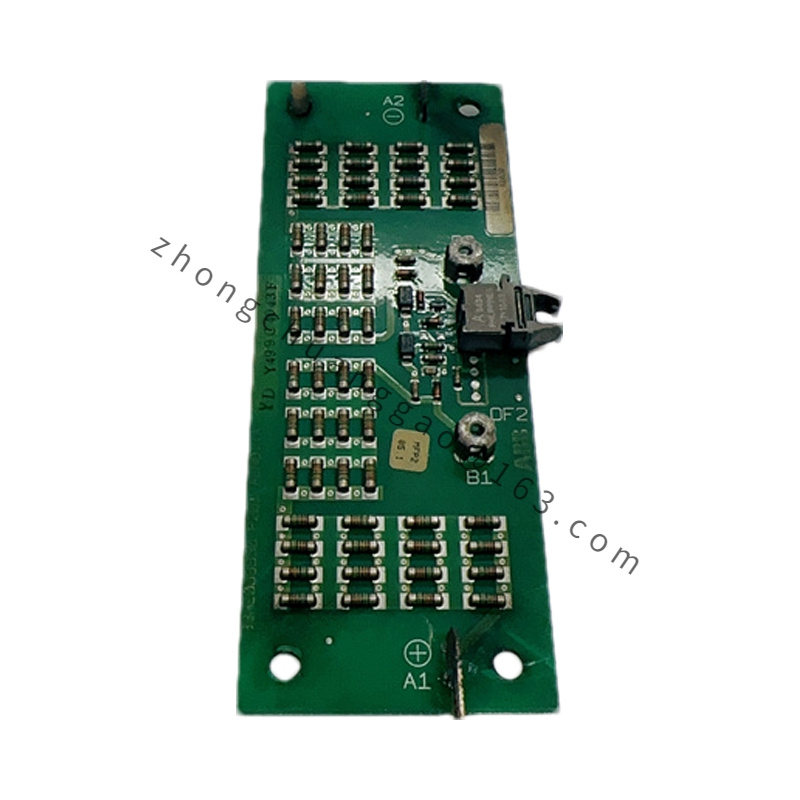

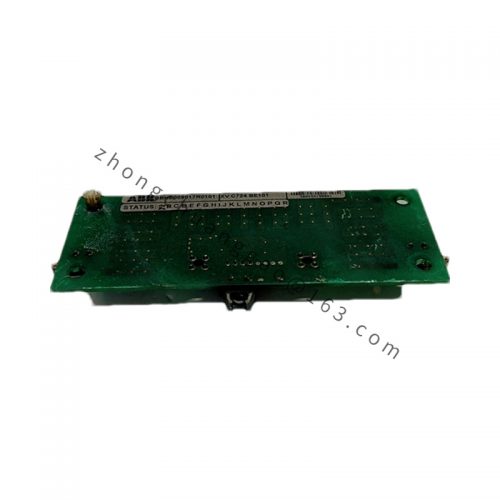

Signal Conversion: ABB XVC724BE101 3BHE009017R01 is capable of converting digital signals (such as switch status, high and low levels, etc.) into analog or digital signals suitable for control system processing.
Multi channel input: Some models may have multiple channels, allowing for simultaneous monitoring of multiple digital input signals.
High speed sampling: In some applications, this module has high-speed sampling capability to ensure the capture of rapidly changing digital signals.
Filtering and debounce: The module may have filtering and debounce functions to eliminate the impact of transient noise and jitter on the system.
Status monitoring: used to monitor changes in the status of external devices or sensors, such as changes in switch status.
Alarm and event triggering: can be configured to generate alarms or trigger events when specific conditions are met to notify operators or the system.
Communication interface: supports data exchange and integration with other devices or control systems.
Remote monitoring: Some models support remote monitoring, allowing operators to view and manage input signal status from a remote location.
Data recording: Record the historical changes in the state of digital signals for analysis and recording.
In addition, according to some information, the module may also have high-resolution cameras and advanced image processing functions (such as edge detection, object tracking, color recognition, etc.), but this may not be fully related to its main function as a digital input module and may be additional features for specific models or application scenarios.
3、 Application scenarios
ABB XVC724BE101 3BHE009017R01 is widely used in industrial automation and control systems, including but not limited to the following scenarios:
Production line monitoring: Real time monitoring and control of the production process is achieved by monitoring various sensors and switch signals on the production line.
Equipment status monitoring: Monitor the operating status of external equipment, such as motors, valves, etc., to ensure the normal operation and timely maintenance of the equipment.
Security protection: Trigger alarms or security measures under specific conditions to prevent accidents from occurring.
Control system integration: As a part of the control system, it exchanges and integrates data with other devices and systems to achieve collaborative work of the entire system.
