Product Type:Drive Control Board

Model:WINT2221C

Series:ACS355

Mark VI:Yes

Board ID:DS200SLCCG3A

Type Designation:PLC

Dimension:11 x 6 x 6.7 cm

Weight:0.14 kg

Product Variant:IP66 for Harsh Environments & Solar Pump Drive Variant Available

Technology:Sensorless Vector Control

Induction Motors Compatibility:Up to 599 Hz

Permanent Magnet Motors Compatibility:Up to 599 Hz

Safety Feature:Safe Torque Off Function (SIL3) as Standard

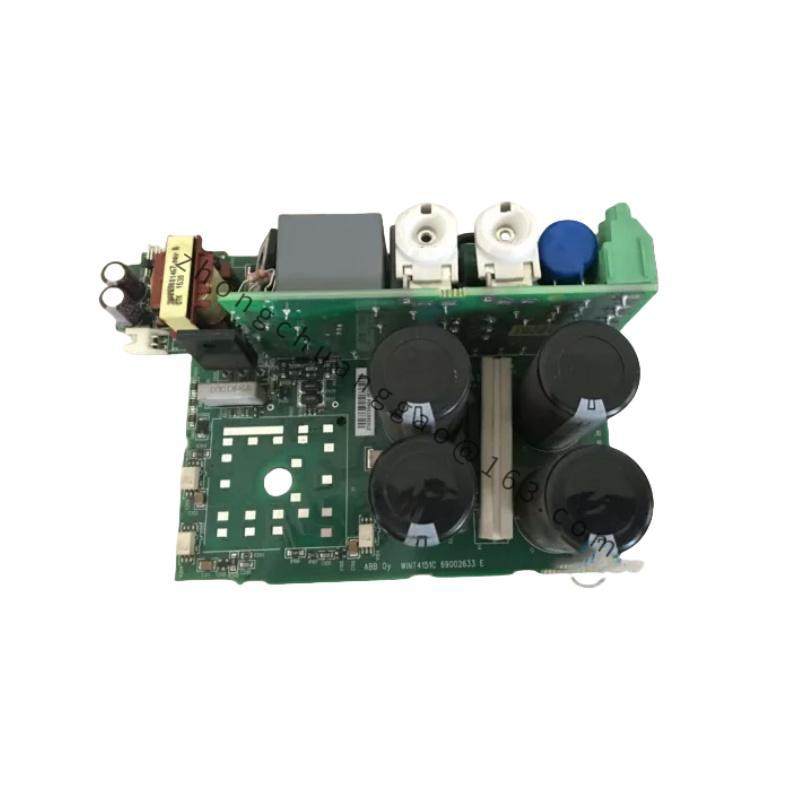

    The ABB WINT2221C ACS355 series drive board boasts an exceptionally compact design, making it suitable for space-constrained industrial environments. Its uniform construction ensures compatibility across diverse applications, enhancing operational efficiency.

    Quick commissioning is simplified through the use of application macros and panel assistants, allowing for rapid setup without compromising on functionality. The safe torque off function (SIL3) is standard, providing enhanced safety in critical operations.

    Sensorless vector control is employed for optimal performance in both induction and permanent magnet motors, supporting frequencies up to 599 Hz. This feature ensures precise control and energy efficiency in demanding industrial processes.

    The built-in braking chopper facilitates smooth transitions between high-speed operation and standstill, reducing wear and tear on the system components. Coated boards withstand harsh environmental conditions, ensuring reliability in outdoor or demanding indoor settings.

    For applications requiring exceptional durability in extreme conditions, the IP66 product variant is available, offering protection against dust and water ingress. Additionally, there’s a specialized solar pump drive variant for renewable energy systems, expanding its utility across multiple sectors.
