1、 Technical specifications

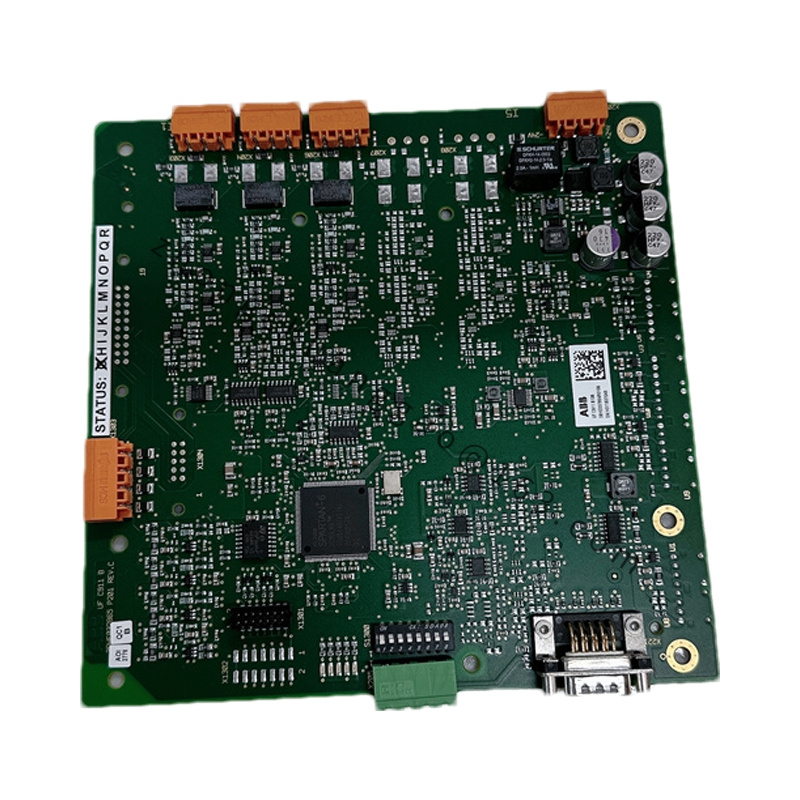

Model: ABB UFC911B106 3BHE037864R0106
Type: This component can be a frequency converter interface board, output module, single axis driver, or communication module (specific types may vary depending on the application scenario).
Supply voltage: For the single axis drive version, the supply voltage range is 18VDC~160VDC, suitable for driving high-power DC brushless servo motors.
Maximum continuous current: For the single axis driver version, the maximum continuous current can reach 50A.
Control modes: including position control mode, speed control mode, and current (torque) control mode, suitable for different control requirements.
Communication Protocol: Supports multiple communication protocols such as RS232, RS485, and CAN bus communication, facilitating data exchange and communication with other devices or control systems.
2、 Functional Features
Connection function: As an interface board for frequency converters, it can connect automation system equipment with the frequency converter to achieve data exchange and control signal transmission between the two.
Communication function: Through interface boards or communication modules, automation system equipment can communicate with frequency converters or other devices to achieve remote monitoring, parameter settings, fault diagnosis, and other functions.
Control function: It may have functions such as controlling the start, stop, and speed adjustment of the frequency converter, or as a single axis drive, it may have position, speed, and current (torque) control functions.
Multi channel output: As an output module, it has multiple output channels and can simultaneously control multiple external devices, improving the control accuracy and response speed of the system.
High performance: Using high-performance processors and large capacity storage, it can quickly process large amounts of data, ensuring the real-time and stability of the system.
High reliability: Built in multiple protection functions, such as temperature protection, overcurrent, overvoltage, undervoltage protection, I2t current limitation, etc., ensure stable operation of the equipment in harsh industrial environments.
3、 Application scenarios
Industrial automation: In the field of factory automation, it is used for real-time data exchange between equipment for process control, monitoring, and optimization.
Energy management: In energy industries such as electricity, oil, and natural gas, it can be used to monitor and manage the operational status of equipment to ensure efficient energy production and distribution.
Building automation: used for the automation control of buildings, such as lighting, air conditioning, safety systems, etc.
Transportation system: In intelligent transportation systems, it can be used for applications such as vehicle recognition, traffic signal control, and road monitoring.
Data Center: Implement data transmission and remote monitoring between servers.
Logistics and Supply Chain: Plays an important role in logistics and supply chain management, used for real-time tracking of goods, inventory management, etc.
