Technical Specifications
Brand: ABB

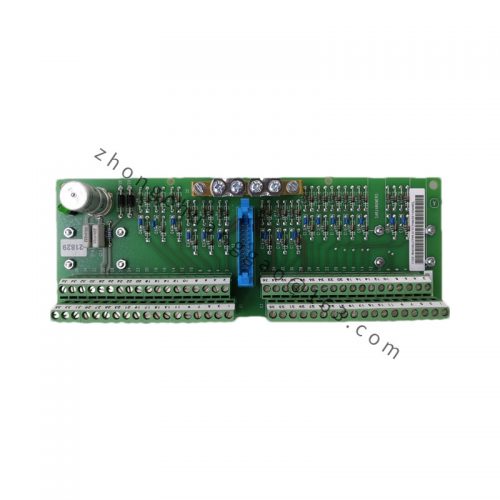

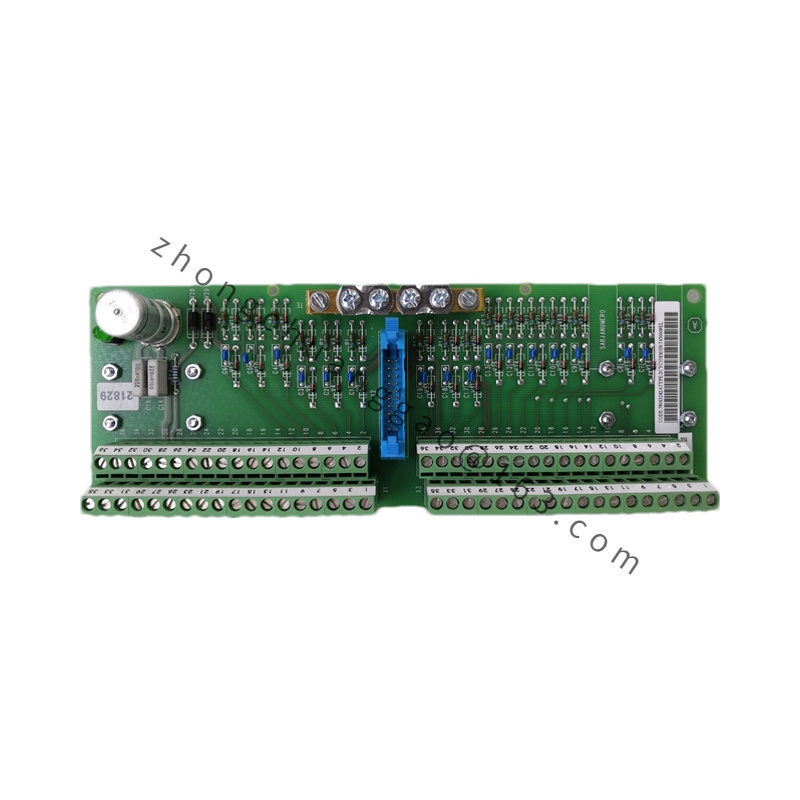

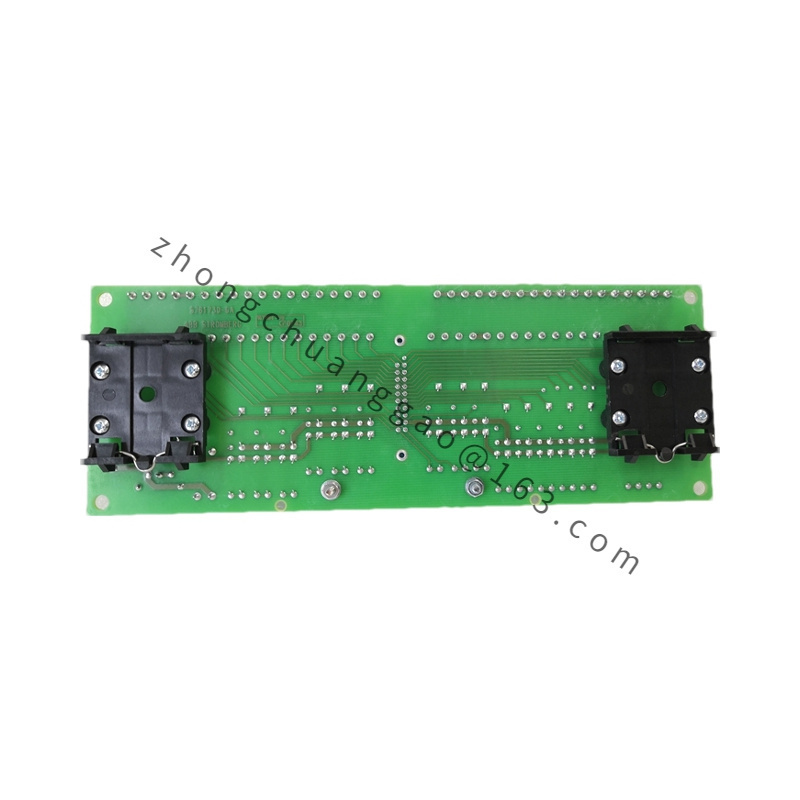

Model: SCYC55830 (also known as 58063282A)
Input Voltage Range: 12-48VDC
Output Voltage: 5VDC
Output Current: Maximum 10A
Efficiency: Greater than 90%
Dimensions: 170mm x 105mm x 32mm
Weight: Approximately 120g
Operating Temperature: -20°C to +50°C
Storage Temperature: -40°C to +70°C
Humidity: 5% to 95% RH (non-condensing)
Processor: 32-bit RISC processor
Functional Features
Digital Input Channels:
Equipped with multiple digital input channels for connecting external switches, sensors, or other digital signal sources.
Each channel typically monitors a specific switch or state.
Signal Types:
Supports discrete digital signals such as on/off, high/low, present/absent, etc.
Data Processing:
May include basic data processing capabilities like signal filtering or conversion to meet the requirements of the control system.
Primarily transmits signals as-is to the PLC or other control devices.
Communication Interfaces:
Provides communication interfaces to transmit digital input data to PLCs, monitoring systems, or other control devices.
Enables remote monitoring and control.
Safety and Reliability:
Incorporates safety features to ensure accurate signal acquisition and prevent misoperations.
Manufactured with high-quality materials and processes to ensure stable operation in harsh industrial environments.
Programming and Configuration:
Can be configured using PLCs or dedicated programming tools to determine how to process and respond to different digital input signals.
Ease of Use:
Provides a user-friendly interface and development tools for easy programming, debugging, and troubleshooting.
Application Scenarios
ABB SCYC55830 is typically used in various industrial automation and control systems, including but not limited to:
Manufacturing:
Monitoring and controlling production lines and machinery in factories.
Power Generation:
Automating and controlling power generation facilities.
Chemical and Petrochemical Industries:
Handling complex control tasks in hazardous environments.
Oil and Gas:
Monitoring and controlling equipment in oil and gas extraction, processing, and transportation.
Water Treatment:
Automating and controlling water treatment and distribution systems.
