Technical Specifications

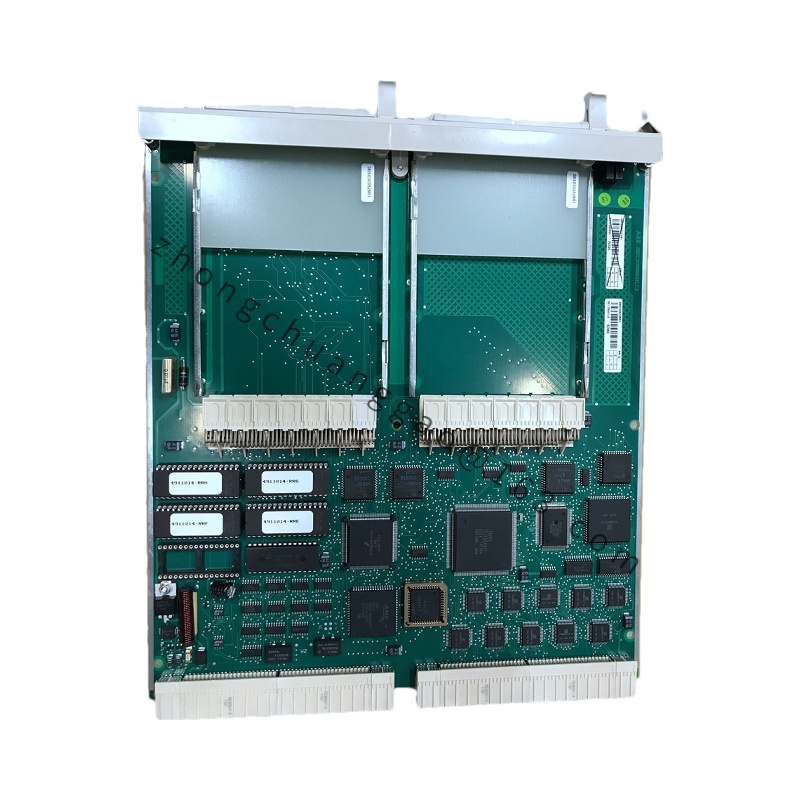

Product Number: 3BSE008105R1
Dimensions:
Net Depth/Length: 486 mm
Net Height: 27 mm
Net Width: 288 mm
Net Weight: 0.76 kg
Power Supply: Internal power supply with the option for external expansion units
Communication:
May include RS485 communication port
Potential compatibility with Ethernet and other industrial communication protocols
Input/Output (I/O) Capability:
Programmable I/O with the ability to expand through extension units
Maximum I/O expansion points can reach up to 256 points (with special expansion options)
Processing Power:
Includes a built-in CPU with program memory
Capable of handling complex control logic and algorithms
Functional Features
Extensibility:
Ability to connect various expansion devices, including expansion units, power units, and function expansion boards.
Expansion units can increase the number of I/O points and provide specialized control functions.
Advanced Control Functions:
May support PID control, frequency converter/power frequency switching, and multi-pump cycling operations.
Flexible PWM (Pulse Width Modulation) for lower noise operation.
Communication Flexibility:
Enables seamless integration with other industrial communication systems, such as PROFIBUS, Ethernet, and more.
RS485 communication port standard in some models.
Programmability:
Programmable controller host with built-in CPU and program memory.
Allows customization of control logic and algorithms to suit specific application needs.
High Reliability:
Rugged design suitable for industrial environments.
Reliable communication and control capabilities ensure continuous operation.
Application Scenarios
ABB SC560 is ideal for a wide range of industrial automation and monitoring applications, including but not limited to:
Power Plants:
For controlling and monitoring various systems in power generation facilities.
Steel Mills:
Automating production lines and controlling process parameters in steel manufacturing.
Chemical and Petrochemical Plants:
Handling complex control tasks in hazardous environments.
Water and Wastewater Treatment:
Monitoring and controlling processes in water treatment and wastewater management systems.
Mining:
Automating mining operations and ensuring safe and efficient extraction.
Manufacturing:
Automating production lines and machinery in various industries such as automotive, electronics, and textiles.
