1、 Technical specifications
Power input: Supports redundant AC power input with a wide voltage range of 100-240V AC (50-60Hz 1.2A), as well as redundant DC power input with a wide voltage range of 48V DC. This design improves the reliability and stability of the equipment.
Interface type:
RJ45 electrical port: supports 10/100/1000Base-T rate adaptation, full/half duplex mode, and supports automatic port flipping.
SFP interface: Supports 1000Base or SFP Copper 1000Base-T (supports twisted pair transmission).
Optical port: Supports 1000Base gigabit full duplex, default SC interface, optional FC and ST, capable of transmitting up to 120 kilometers.
Console port: RS-232 (RJ45 connector) debugging serial port.
Exchange attributes:
10 Mbps forwarding speed: 14881pps
100Mbps forwarding speed: 148810pps
Gigabit forwarding speed: 1488096pps
Transmission method: store and forward
System switching bandwidth: 56Gbps
Cache size: 1.5Mbits
MAC address table: 16K
2、 Functional Features
High voltage variable frequency regulation: used to control high-voltage power sources or motors, adjust output frequency and voltage to achieve precise speed and torque control.
Modular design: As a pluggable module component, it is easy to install and replace, improving the flexibility and maintainability of the equipment.
High performance processor: Built in high-performance processor that can achieve fast data processing and control response, ensuring precise control of the device.
Multiple communication interfaces: may have multiple communication interfaces such as Ethernet, Modbus, Profibus, etc., used for data exchange and communication with other devices or systems.
Protection function: It has overcurrent, overvoltage, overload and other protection functions to protect circuits and equipment from damage.
Stability and reliability: The design is stable and reliable, suitable for long-term industrial applications, and has good anti-interference ability.
Programmable: Supports parameter configuration and programming to meet the needs of different application scenarios.
3、 Application scenarios

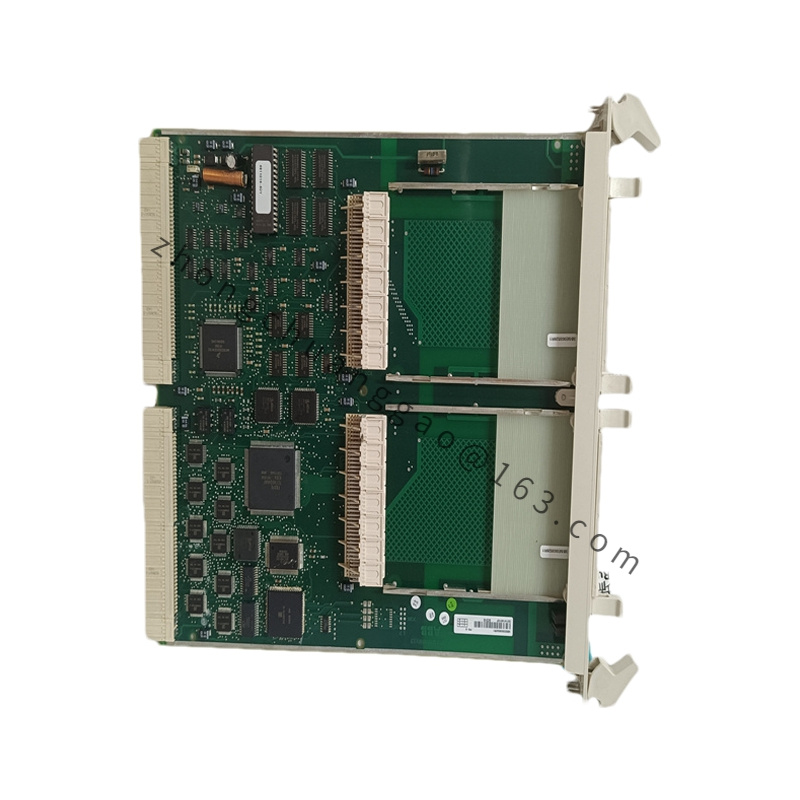

ABB SC510 3BSE003832R1 is widely used in various industrial automation control systems, including but not limited to the following fields:
Power system: used to control and regulate the operating speed and frequency of high-voltage motors, achieving energy conservation and optimization.
Manufacturing: In manufacturing, it can be used to connect machines, production lines, and control systems to achieve automation and intelligence of the production process.
Transportation: It may be applied in fields such as traffic signals, rail transit systems, and vehicle management to improve the operational efficiency and safety of transportation systems.
Data Center: In a data center, it can be used to connect servers, network equipment, and power systems to ensure the stable operation of the data center.
Energy management: plays a role in energy distribution and monitoring systems, such as substations and energy metering equipment.
Building automation: In building management systems, it is used to connect lighting, HVAC, safety systems, and other equipment to improve the intelligence level of buildings.
