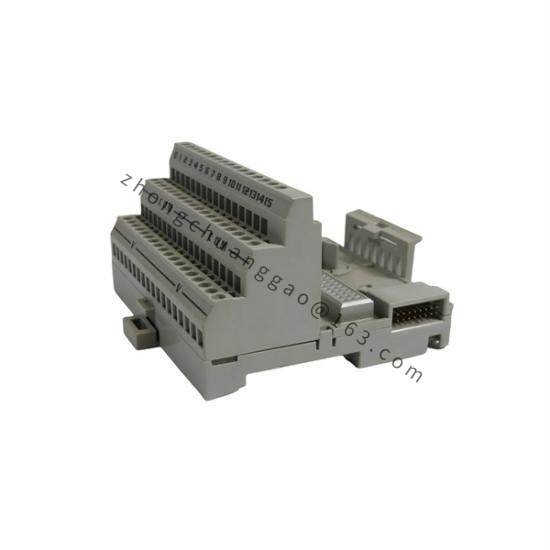

ABB S200TB3 S200-TB3 Terminal Block – High-Performance Control Module
The ABB S200TB3 Terminal Block is an advanced electrical connection solution designed to provide robust and efficient power distribution in industrial automation systems. It is a key component in ensuring reliable and safe electrical circuits within complex manufacturing environments.
Detailed content
Model Number:S200TB3 S200-TB3
Brand:ABB
Terminal Configuration:24-pin
Material:Corrosion-resistant brass and plastic
Insulation Resistance:≥1000MΩ @ 500VDC
Operating Temperature Range:-20°C to +60°C
Electrical Rating:Up to 16A
Approvals & Certifications:CE, UL, CSA
Introducing the ABB S200TB3 Terminal Block, a high-performance industrial module designed to meet the demanding requirements of modern manufacturing environments. Engineered for seamless integration into complex control systems, this terminal block ensures reliable connectivity and efficient power distribution.
Crafted from high-grade aluminum alloy, the S200TB3 Terminal Block combines durability with lightweight design, making it suitable for a wide range of applications. Its compact dimensions (120mm x 100mm x 20mm) allow for optimal space utilization in control panels.
With voltage ratings up to 400V AC/DC and current ratings ranging from 10A to 60A, this terminal block is versatile enough to handle various electrical demands. Its spring-loaded terminal connections ensure secure and easy wiring, facilitating quick installation and maintenance.
Operating within an extensive temperature range (-20°C to +70°C), the S200TB3 Terminal Block is built to withstand harsh industrial conditions. It comes with IP20 protection, offering basic splash resistance, ensuring its longevity in diverse environments.
Certified by CE, UL, and CSA, the ABB S200TB3 Terminal Block adheres to international safety standards, providing peace of mind for users in terms of quality and compliance. This commitment to excellence makes it an ideal choice for engineers and technicians seeking reliable and efficient solutions for their automation projects.
