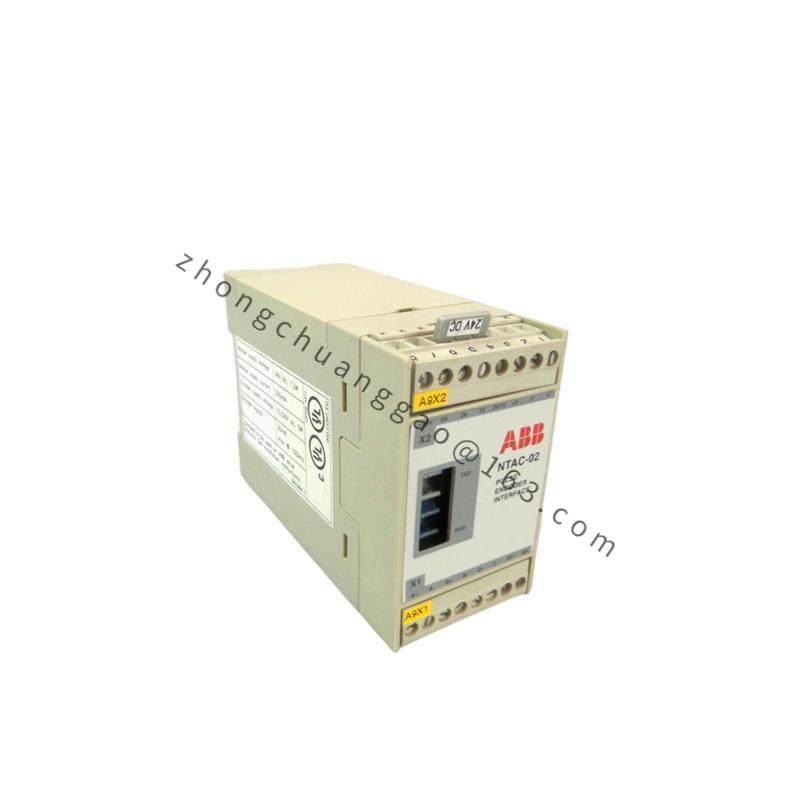

Product Type:Pulse Encoder Interface

Model ID:NTAC-02

ABB Type Designation:Precision Measurement Module

Interface Dimension (D x H x W):150 x 180 x 0.5 mm

Weight:0.1 kg

Operating Voltage Range:12-24V DC

Signal Output Type:Digital

Max. Signal Frequency:500 Hz

Resolution:1024 pulses per revolution

Environmental Conditions:Operating Temperature: -20°C to +60°C, Storage Temperature: -40°C to +85°C

Protection Rating:IP65 (front panel), IP20 (enclosure)

    The ABB NTAC-02 Pulse Encoder Interface is engineered to meet the stringent requirements of industrial automation systems. Its compact size and robust design make it an ideal choice for space-constrained applications where precision is paramount.

    With its advanced RS-485 interface and MODBUS RTU communication protocol, the NTAC-02 ensures seamless integration with a wide range of control systems, enhancing system interoperability and efficiency.

    Featuring an exceptionally low power consumption of just 2 watts, this module is energy-efficient and reduces overall system costs. Its operating temperature range (-20°C to +70°C) ensures reliable performance in diverse environmental conditions.

    Precision is at the heart of the NTAC-02’s design. It offers an accuracy of ±0.05% of the reading, ensuring that every pulse output is highly accurate and consistent, critical for applications requiring high repeatability and precision.

    With a Mean Time Between Failures (MTBF) exceeding 100,000 hours, the NTAC-02 Pulse Encoder Interface boasts exceptional reliability, minimizing downtime and maintenance needs, thus maximizing system uptime and productivity.
