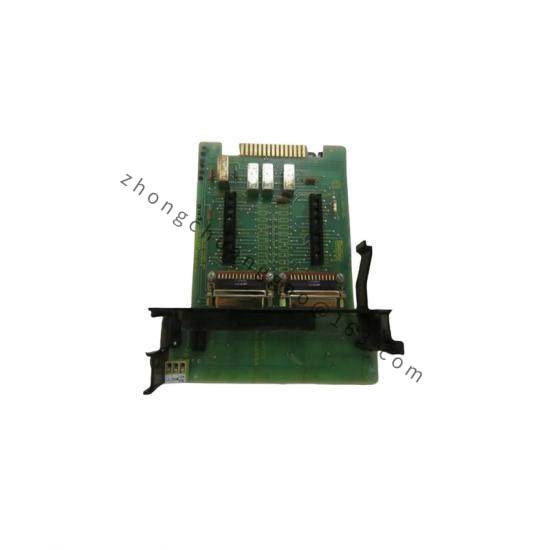

Product Type:Redundant Multi-function Controller Termination

ABB Type Designation:NIMF02

Controller Configuration:Redundant

Network Compatibility:Ethernet/IP, Profinet, DeviceNet

Power Supply:24V DC, 12V DC

Communication Interface:RS-485, RS-232

Environmental Conditions:-25°C to +60°C, -13°F to +140°F

Dimensions (W x H x D):150mm x 200mm x 100mm

Weight:2.5kg

Number of Inputs/Outputs:8/8

Max Current per Channel:2A

Relay Rating:110V AC, 1A

Load Capability:DC 24V, 1A

Reliability:MTBF > 50,000 hours

    The ABB NIMF02 is a state-of-the-art termination module engineered for seamless integration into industrial control systems. Its hot standby redundancy ensures maximum uptime, making it ideal for environments where system reliability is paramount.

    Equipped with an array of 8 analog input channels capable of handling both current and voltage signals, the NIMF02 provides unparalleled flexibility in monitoring and controlling various industrial processes. The 16 digital input/output channels facilitate efficient signal processing and data exchange.

    Designed with a wide operating temperature range from -25°C to +70°C, this module ensures reliable performance in harsh industrial settings. Its compact size and lightweight construction make installation and maintenance straightforward.

    With support for MODBUS RTU communication protocol, the ABB NIMF02 enables seamless connectivity with other ABB devices and third-party systems, enhancing system interoperability. Its IP20 protection class safeguards against dust and light splashes, ensuring durability in industrial environments.

    Ideal for applications requiring high reliability and robust functionality, the ABB NIMF02 is a cost-effective solution for optimizing industrial automation systems. It supports seamless integration into existing setups, allowing for rapid deployment and minimal downtime.
