1、 Technical specifications

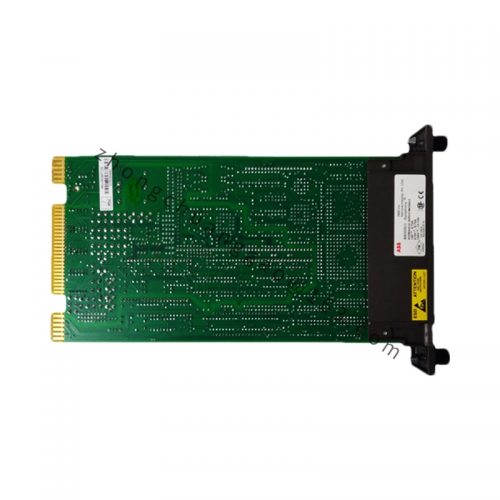

Type: Hydraulic servo module
Function: Valve position control, used to control turbine speed
Integration: Integrating servo valves or servo motors with controllers
Analog to digital converters and digital to analog converters: high resolution, providing precise speed and position control
Interface:
Redundant LVDT interface: capable of handling AC or DC LVDT transformers
Redundant servo valve output: Provides operational options and supports the simultaneous use of two active control servo valves or a backup active control servo valve with one servo valve
Automatic adjustment function: capable of automatically adjusting its demodulator gain, providing better control loop response
Communication capability: equipped with communication interfaces, facilitating data exchange with other control systems or monitoring devices
2、 Functional Features
Precise control: IMHSS03 adopts advanced control algorithms and optimized design, which can achieve high-precision position, speed, and torque control, meeting various complex application requirements.
Enhanced Performance: Compared to its predecessor IMHSS01 and IMHSS02 modules, IMHSS03 has better performance, including high-resolution analog-to-digital converters and digital to analog converters, more accurate LVDT signal conditions, as well as improved I/H converter interfaces and digital/analog input/output isolation.
Automatic adjustment: The module has the function of automatically adjusting the demodulator gain, which can optimize the control loop response and improve system performance.
Redundant design: The redundant LVDT interface and servo valve output provide higher system reliability and safety, ensuring that the system can still operate in the event of partial component failures.
Programmable: Users can use programming software to write and debug custom control programs to meet specific application requirements.
Easy to monitor: The IMHSS03 module supports signal monitoring function, which helps to monitor and maintain complex control systems in real-time.
Strong compatibility: The module can be connected to a personal computer for communication, enabling computer participation in programming and management of PLC control, making PLC more convenient to use. At the same time, it can also communicate with the computer, which reads out the data in the DM area and processes it again.
3、 Application scenarios
The IMHSS03 hydraulic servo module is widely used in various industrial automation and control systems, including but not limited to:
Machine Tool: In the machine tool industry, IMHSS03 is used to precisely control the moving parts of machine tools, improving machining accuracy and efficiency.
Robots: In the field of robotics, IMHSS03 serves as a key control component to achieve precise motion and positioning of robots.
Conveyor belt system: In the logistics industry, IMHSS03 is used to control the speed and position of the conveyor belt, ensuring the accuracy and stability of material transportation.
Printing machine: In the printing industry, IMHSS03 controls the position and speed of the printing head or cylinder of the printing machine to achieve high-precision printing operations.
Turbine control system: In the turbine control system, IMHSS03 connects servo valves or I/H converters to a multifunctional processor module (MFP), and controls the position of steam or gas turbine throttle valves by sending position requirements to the hydraulic servo (HSS) module, achieving precise, efficient, and safe control.
