Type:Industrial Control Circuit Board

Model:HIEE300025R2

Version:VDA330 A02

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Supply Voltage:DC 12V to 48V

Dimensions (WxHxD):100mm x 100mm x 20mm

Connectors:2 x RS-485, 1 x Ethernet

Communication Protocols:Modbus TCP/IP, OPC-UA

Load Capacity:Up to 500mA per channel

Number of Channels:16

Material:High-grade FR-4 epoxy glass

Certifications:CE, UL, ISO 9001

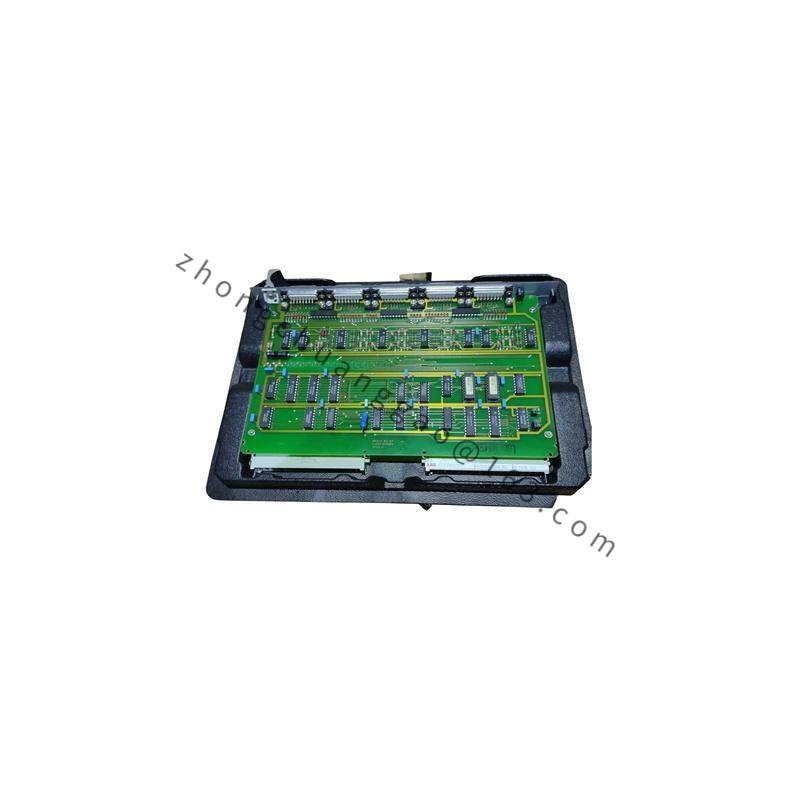

    The ABB HIEE300025R2 VDA330 A02 circuit board is meticulously engineered to meet the stringent requirements of industrial automation applications. It boasts a compact yet robust design, ideal for integration into various machinery and control systems.

    Featuring an extended temperature range from -20°C to +70°C, this circuit board ensures reliable performance in both industrial and harsh environments. With its high-grade FR-4 epoxy glass material, it offers superior thermal stability and electrical insulation.

    Equipped with 16 channels, each capable of handling up to 500mA, this board provides ample resources for managing complex control tasks. It supports multiple communication protocols, including Modbus TCP/IP and OPC-UA, facilitating seamless integration with a wide range of automation software.

    The inclusion of 2 RS-485 and 1 Ethernet connectors allows for versatile connection options, enhancing compatibility with various devices and systems. This circuit board is not just about functionality; it also prioritizes user safety with certifications from CE, UL, and ISO 9001, ensuring compliance with international standards.

    Designed for durability and reliability, the ABB HIEE300025R2 VDA330 A02 circuit board is an essential component for any industrial automation project seeking top-tier performance and robustness.
