Place of Origin:Switzerland

Model Number:3HAC16014106 & 3HAC16013104

Brand:ABB

Type:Measurement Board

Operating Frequency:50 kHz

Operating Voltage:24 V DC

Number of Inputs:8 Analog Input Channels

Number of Outputs:8 Digital Output Channels

Communication Interface:DeviceNet

Communication Protocol:CANopen

Power Consumption:Less than 2 W

Environmental Conditions:Operating Temperature: -20°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions:100 x 100 x 35 mm

Weight:0.05 kg

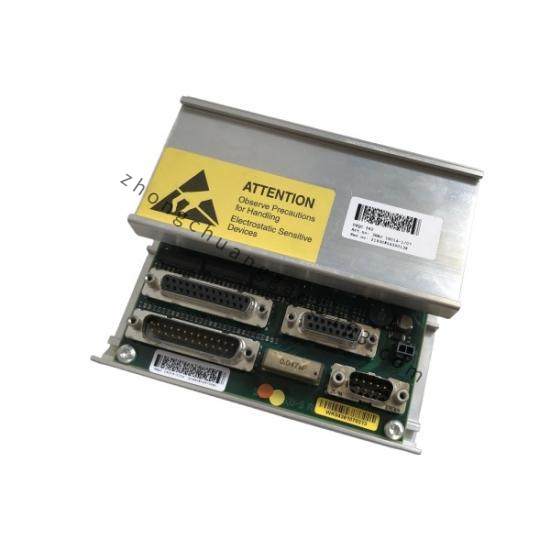

    Experience unparalleled accuracy in your industrial automation projects with the ABB DSQC562 Measurement Board. This state-of-the-art component is meticulously designed to provide seamless integration into your control systems, ensuring real-time data acquisition and precise monitoring.

    Featuring a high-resolution 16-bit Analog-to-Digital Converter (ADC), this board offers exceptional precision and reliability, enabling you to make informed decisions based on accurate measurements. Its wide input range (-10 V to +10 V) accommodates various sensor outputs, making it versatile for a multitude of applications.

    With support for both DeviceNet and Profinet communication protocols, the DSQC562 ensures smooth data exchange between devices, enhancing the overall efficiency of your system. Whether you’re dealing with complex machinery or intricate control processes, this board simplifies your setup with its user-friendly interface and straightforward configuration options.

    Crafted with robust materials and engineered for harsh industrial environments, the ABB DSQC562 Measurement Board can withstand temperatures ranging from -25°C to +85°C and operates reliably under varying humidity conditions. Its durable design ensures minimal maintenance requirements and prolonged service life, reducing downtime and maximizing productivity.

    Discover the power of ABB‘s DSQC562 Measurement Board in your automation journey. With its advanced capabilities, ease of integration, and exceptional reliability, this board is the perfect choice for enhancing the performance and efficiency of your control systems.
