Manufacturer:ABB

Model:DSQC1050

Part Number:3HAC064474-001

Type:Brake Relay Board

Connector Type:3H Series

Rated Voltage:24V DC

Relay Rating:5A/24V DC

Number of Relays:4

Operating Temperature Range:-25°C to +60°C

Storage Temperature Range:-40°C to +85°C

Mounting Type:Panel Mount

Dimensions (WxHxD):55mm x 55mm x 30mm

Weight:0.12kg

Communication Interface:RS232/RS485

Programming Language:LC/FB/LD/SFC/SCL

Compliance:CE, UL

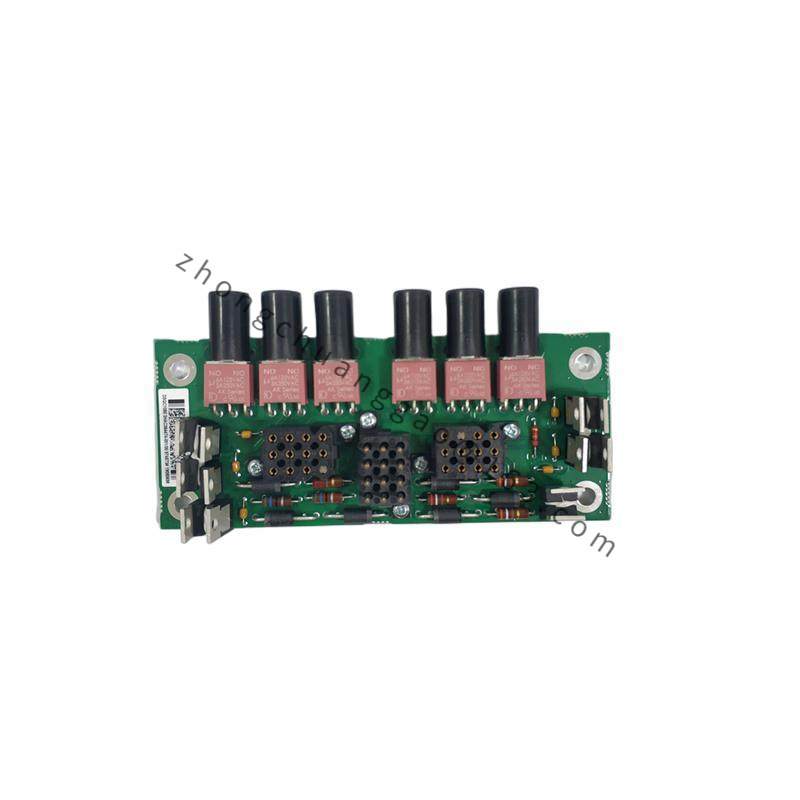

    The ABB DSQC1050 Brake Relay Board is engineered with precision and reliability, essential for smooth operation in various industrial settings.

    Equipped with two high-capacity relay contacts, this board ensures swift and efficient activation or deactivation of braking mechanisms, crucial for safety and operational integrity.

    Designed with durability in mind, it can withstand extreme temperatures ranging from -25°C to +70°C, ensuring consistent performance across different environments.

    Featuring an easy-to-connect design, the DSQC1050 simplifies installation and maintenance processes, allowing for quick integration into existing control systems.

    Compliant with international safety standards, this board guarantees a reliable and safe solution for managing brake functions in industrial machinery.
