Type:Resolver Board

Model:DSQC104

Manufacturer:ABB

Operating Temperature Range:-20°C to +60°C

Resolution:1 arc-minute

Input Voltage:DC 5 V

Communication Interface:RS-232, CANopen

Power Consumption:Less than 1 W

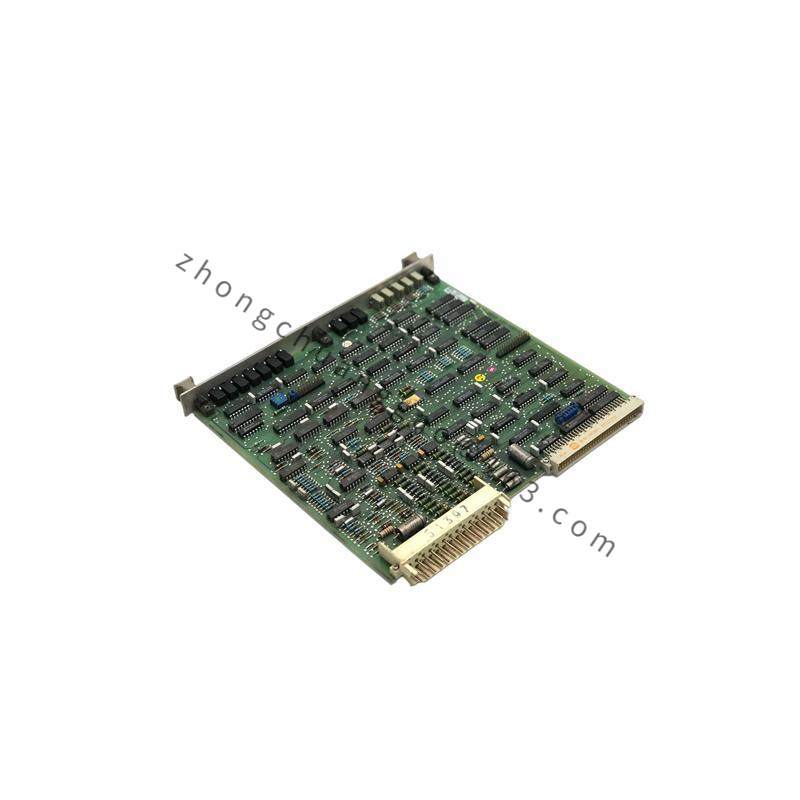

    The ABB DSQC104 Resolver Board is a critical component in industrial automation systems, providing unparalleled precision in angular position measurement.

    Engineered for durability and reliability, it ensures accurate readings across a wide range of temperatures and humidity conditions, making it ideal for harsh industrial environments.

    With a resolution of 1024 ticks per revolution, the DSQC104 delivers exceptional detail in angular measurements, essential for applications requiring high accuracy.

    Featuring a 2-wire, 4-20mA current loop output signal, this board seamlessly integrates with existing control systems, enhancing operational efficiency and data collection capabilities.

    Designed with an operating voltage range from DC 9…36V, the DSQC104 is compatible with various power sources, ensuring flexibility in installation and use.

    Backed by ABB’s reputation for quality and support, the DSQC104 Resolver Board comes with comprehensive documentation and technical assistance, ensuring a smooth integration into your industrial automation projects.
