1、 Technical specifications

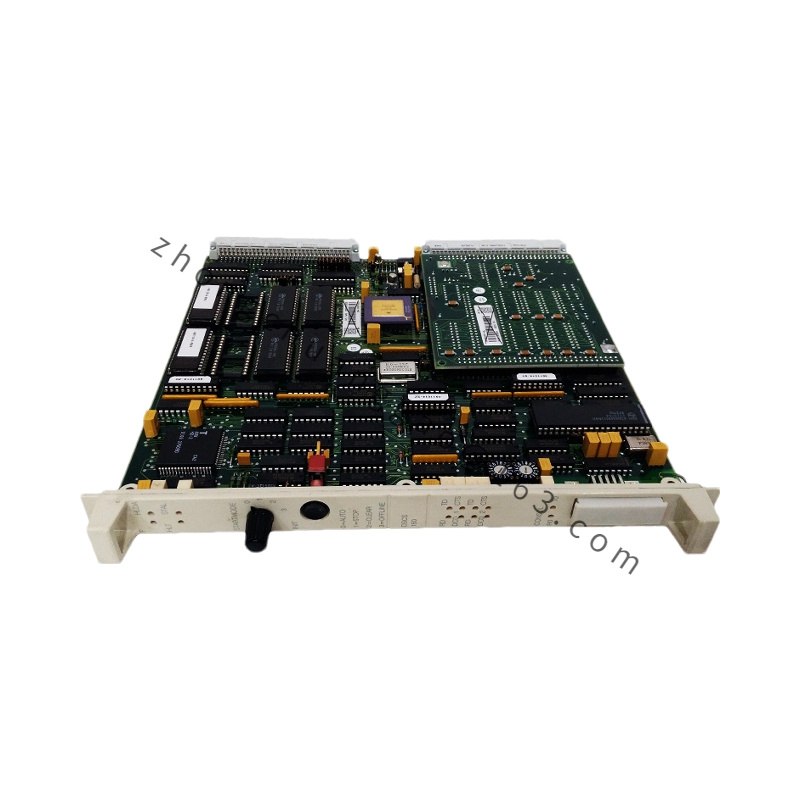

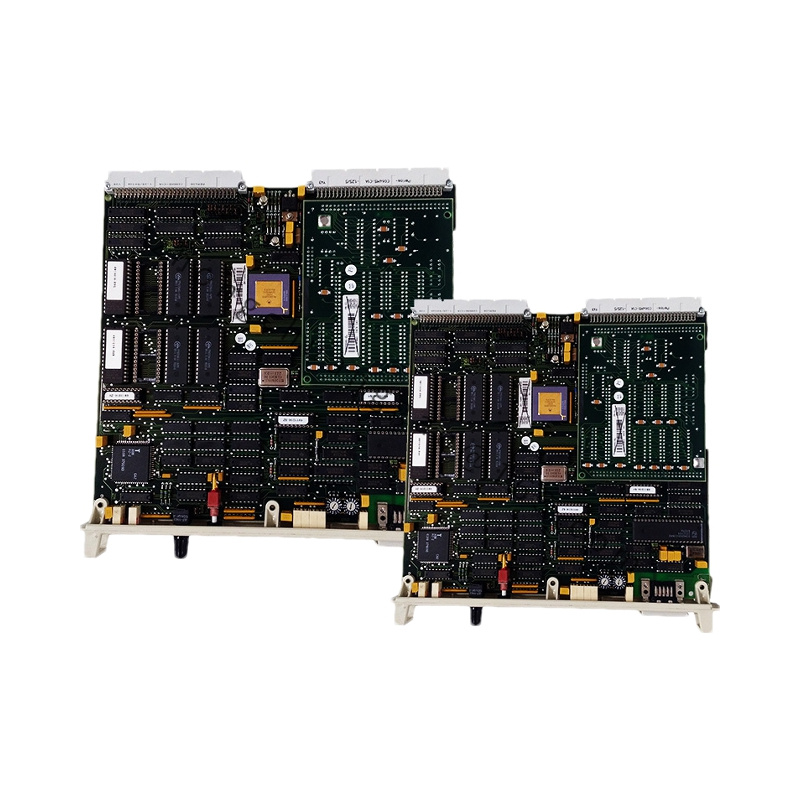

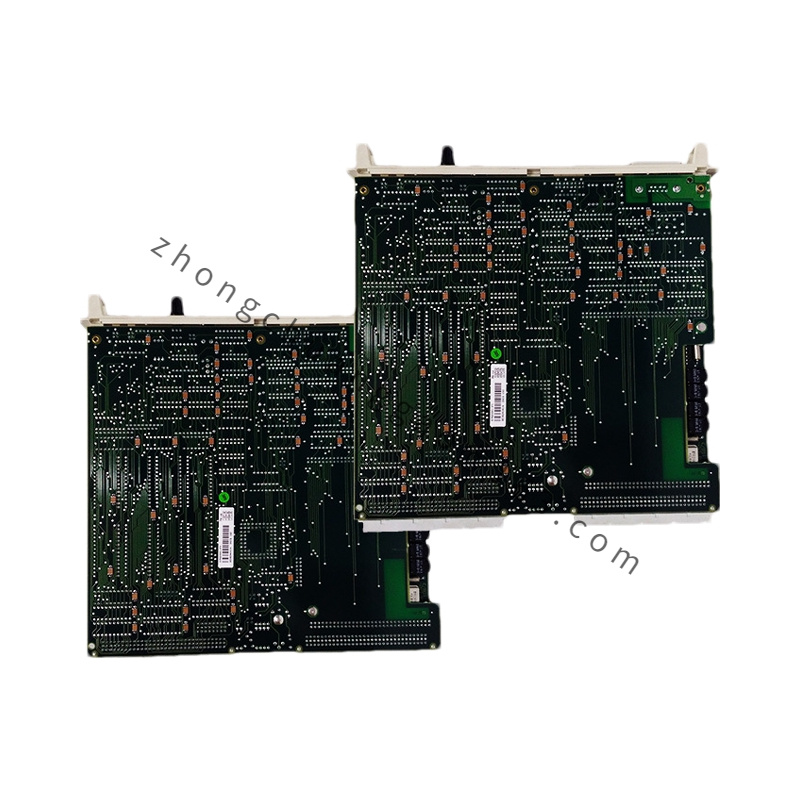

Model and name: ABB DSCS 150 5752001-FY, commonly known as DSCS 150 GCOM communication unit.
Interface and Communication Protocol:
Interface type: Supports multiple interfaces such as GCOM, RS232, RS485, etc.
Communication protocols: including GCOM, Modbus RTU, PROFIBUS DP, etc., ensuring compatibility with various control systems and devices.
Power supply and power consumption:
Power supply voltage: usually 24VDC.
Power consumption: about 5W, ensuring the stability and energy efficiency of the module during long-term operation.
Physical dimensions and weight:
Size: Depending on the source, the size may vary slightly, but it is approximately 110mm x 60mm x 25mm (or 100mm x 100mm x 50mm).
Weight: ranging from approximately 200 grams to 250 grams.
Environmental adaptability:
Working temperature range: -20 ° C to+60 ° C (or -10 ° C to 50 ° C), ensuring stable operation in most industrial environments.
Storage temperature range: -40 ° C to+85 ° C (or -20 ° C to 70 ° C), suitable for a wider range of storage conditions.
Humidity: 10% to 90% without condensation, ensuring reliability in humid environments.
Shell and Material: The protection level of the shell is IP20, and it is made of materials such as ABS plastic, which has good durability and protective performance.
2、 Functional Features
Multiple communication protocol support: DSCS 150 57520001-FY supports multiple communication protocols to meet the communication needs between different control systems and devices.
Efficient data transmission: Supports a return rate of up to 1 Mbps, ensuring efficient data transmission between the control system and communication network.
High reliability: Using high-quality components and advanced design to ensure the stability and reliability of the module during long-term operation.
Easy to configure and manage: Provides web server functionality, allowing users to configure and manage through a web browser, making it convenient and efficient.
Modular design: As part of the ABB MasterPiece 200 control system, the DSCS 150 5752001-FY adopts a modular design, which facilitates users to expand and upgrade according to their actual needs.
3、 Application scenarios
DSCS 150 5752001-FY is widely used in various industrial fields, including but not limited to:
Chemical industry: In the chemical production process, DSCS 150 57520001-FY can be used to connect various sensors, controllers, and actuators to achieve real-time monitoring and control of process parameters.
Oil and gas: In the oil and gas industry, this module can be used for remote monitoring and data acquisition systems of oil and gas fields.
Electricity: In the power system, DSCS 150 5752001-FY can be used to connect key equipment such as power plants and substations, achieving automated control of power production and transmission.
Water treatment: In the water treatment industry, this module can be used for water quality monitoring, pump station control, and other scenarios to ensure the effective utilization of water resources and environmentally friendly discharge.
Food and Beverage: In the field of food and beverage processing, DSCS 150 57520001-FY can be used for equipment control and data collection on production lines to improve production efficiency and product quality.
Automotive manufacturing: In the automotive manufacturing industry, this module can be used for equipment interconnection and data exchange on automated production lines, achieving intelligent and efficient production processes.
