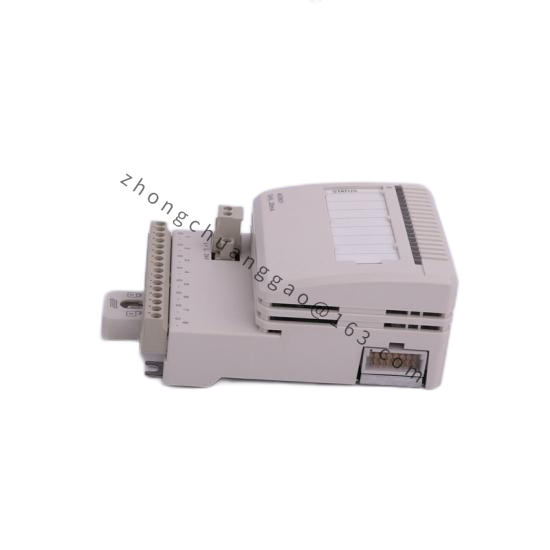

ABB DO524 Transistor – Industry-grade Relay Module for High-Frequency Switching
The ABB DO524 Transistor is a high-performance industrial control module designed for seamless integration into complex automation systems, ensuring precise signal transmission and reliable operation across various industries.
Detailed content
Power Rating:500W @ 400V AC
Operating Temperature Range:-20°C to +70°C
Switching Frequency:Up to 10 kHz
Input Signal Type:Digital
Output Type:Transistor-based
Response Time:Less than 1 ms
Load Capacity:Continuous: 500mA, Peak: 1A
Protection Features:Overcurrent, Overvoltage, Short-circuit
Communication Interface:RS-485 Modbus
Size & Dimensions:25mm x 25mm x 10mm
The ABB DO524 Transistor Switching Module is engineered for precision and reliability, making it an ideal choice for applications requiring high-speed switching operations within industrial automation environments.
Featuring a compact design, this module seamlessly integrates into a variety of control systems, enhancing efficiency and reducing installation time.
With its robust construction and wide temperature range, the DO524 is suitable for harsh industrial conditions, ensuring dependable performance even in extreme environments.
Equipped with a quick-release mechanism for easy maintenance and replacement, the module supports seamless system upgrades and troubleshooting.
Designed with user convenience in mind, the terminal block connections allow for straightforward wiring and configuration, facilitating quick setup and integration into existing systems.
Comprehensive documentation and support from ABB guarantee ease of use and optimal performance, ensuring that users can fully leverage the capabilities of the DO524 Transistor Switching Module in their industrial automation projects.
