Operating Voltage (V):600

Current Rating (A):71

Switching Frequency (kHz):20

Package Type:TO-247

Insulation Resistance (MΩ):≥1000

Operating Temperature Range (-°C to +°C):-40°C to +175°C

Storage Temperature Range (-°C to +°C):-65°C to +175°C

Certifications:[“IEC 60071-2″,”IEC 60071-4”]

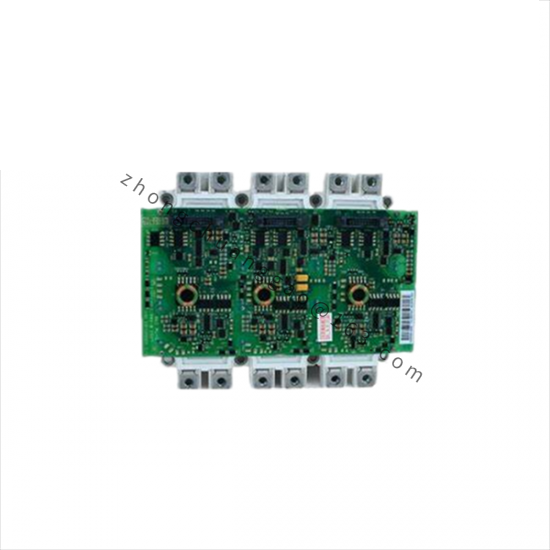

    The ABB AGDR-71C IGBT module is engineered with state-of-the-art semiconductor technology to deliver exceptional performance in demanding industrial environments. This module is specifically designed to enhance system efficiency by minimizing power losses and maximizing energy conversion rates.

    Featuring a robust thermal management system with a thermal pad and forced air cooling, the AGDR-71C ensures reliable operation even under extreme conditions, making it ideal for applications requiring high endurance and minimal downtime.

    With an operating temperature range from -40°C to +125°C, this module is suitable for use in a wide variety of industrial settings, from cold storage facilities to high-temperature manufacturing processes.

    Equipped with advanced switching capabilities, the AGDR-71C can handle up to 100 A of continuous current and switch at frequencies up to 5 kHz, enabling smooth and precise control over electric motors and other load-bearing equipment.

    Backed by ABB‘s commitment to quality, the AGDR-71C IGBT module comes with an electrical rating of 3kV CAT III, ensuring safety in industrial circuits. Its superior insulation resistance and compact size make it an efficient solution for space-constrained industrial automation setups.
