Manufacturer:ABB

Model Number:ABSDP-PDP-3

Module Type:PCB Card

Operating Temperature Range:-20°C to +70°C

Storage Temperature Range:-40°C to +85°C

Input Voltage:24V DC

Output Voltage:12V DC

Current Capacity:10A

Communication Interface:Modbus RTU

Mounting Type:Panel Mount

Dimensions:100mm x 60mm x 20mm

Weight:0.2kg

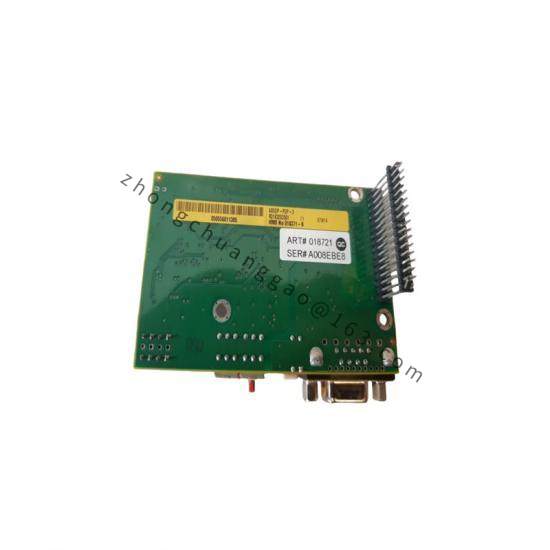

    The ABB ABSDP-PDP-3 PCB CARD is engineered with precision for industries demanding high reliability and efficiency. This card supports a wide range of applications from manufacturing processes to process control, ensuring smooth operation even in challenging environments.

    Equipped with two high-precision analog inputs, this module allows for accurate data acquisition, crucial for monitoring and controlling critical parameters in industrial operations. Its single analog output ensures precise control over actuators or other equipment.

    Featuring four SPDT relay outputs, the card provides versatile control options for switching or signaling tasks. These relays can be used for a variety of functions, including but not limited to, alarm systems, safety mechanisms, or process control adjustments.

    With its ability to communicate via RS485 using Modbus RTU protocol, the ABB ABSDP-PDP-3 PCB CARD seamlessly integrates with existing control networks, facilitating easy setup and maintenance. This compatibility ensures a smooth transition and expansion within existing automation systems.

    Engineered for longevity, this module operates efficiently within a broad temperature range, ensuring it remains functional in diverse industrial climates. The separate power supply requirement ensures stability and prevents any disruptions caused by power fluctuations.
