1、 Technical specifications
Power supply design: Provides redundant wide voltage (12-48V DC) power input, with a typical operating voltage of 12V/24V/48V, and a full load power consumption of less than 7W, demonstrating a high energy efficiency ratio.
Input and output capability: With 8 digital inputs and 6 digital outputs, as well as 4 analog inputs, it meets diverse input and output requirements.
Communication interface: Provides communication interfaces such as Ethernet, RS485, USB, etc. for easy integration with existing systems, and supports multiple communication protocols, ensuring good compatibility and scalability.
Other specifications: such as breakdown voltage up to 1200V, maximum saturation current of collector exceeding 1500A, etc.
2、 Functional characteristics
Compact design: This module has a compact design that saves installation space and is very suitable for use in situations with limited space.
Sturdy structure: Its structure is sturdy and can operate reliably in harsh environments, which is crucial for ensuring the continuity of industrial production and reducing downtime.
Efficient heat dissipation design: Adopting an efficient heat dissipation design, it can effectively dissipate heat, improve the reliability and stability of the module.
Programmable function: Users can implement different control logic and algorithms through programming to meet different application requirements.
Programming convenience: A programming language that complies with the IEC 61131-3 standard, and a user-friendly programming interface makes configuration and maintenance more convenient.
3、 Application scenarios

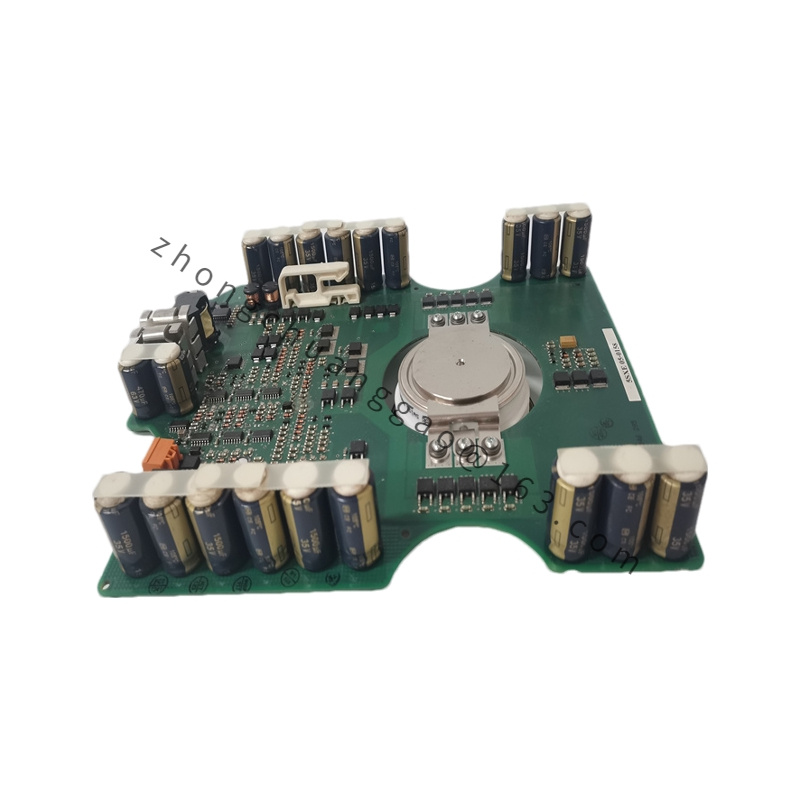

The ABB 5SHX0660F0002 module has a wide range of application scenarios, including but not limited to:
Motor control: used for speed regulation and starting of electric motors, achieving precise control of motor operation.
Electric dimming system: In lighting applications, used for electric dimming systems to adjust the brightness of lights.
Power transmission and distribution: In the power system, it is used to achieve precise distribution and regulation of electricity, improve the stability and efficiency of the power grid.
Welding equipment: used in arc welding machines and other equipment to control welding current and voltage.
