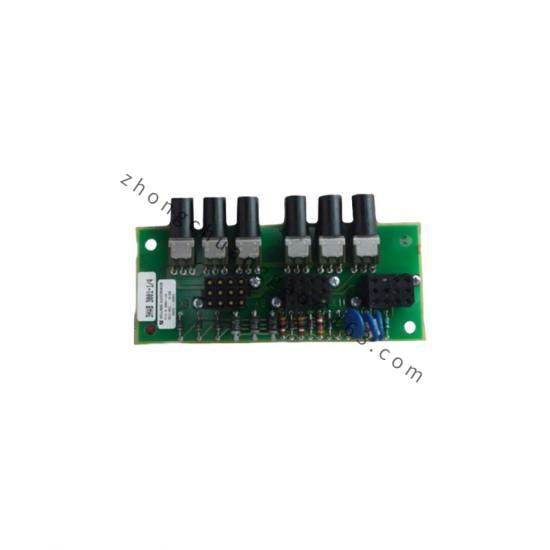

ABB 3HAB3001-1/4 | High-Power Brake Release Board | Switching Module
The ABB 3HAB3001-1/4 Brake Release Board Switch Module is specifically designed for industrial applications, providing precise control over brake release mechanisms to enhance safety and operational efficiency in manufacturing environments.
Detailed content
Brand:ABB
Model:3HAB3001-1/4
Module Type:Brake Release Board Switch
Application Area:Industrial Automation
Operating Temperature:-40°C to +70°C
Storage Temperature:-40°C to +85°C
Operating Humidity:5% to 95% non-condensing
Operating Pressure:Standard Atmospheric Pressure
Electrical Ratings:Rated Current: 5A, Rated Voltage: 24VDC
Switching Frequency:Up to 10 kHz
Relay Contact Rating:3A @ 24VDC, 1A @ 250VAC
Communication Interface:MODBUS RTU
Power Supply:DC 24V
Dimensions (WxHxD):96mm x 100mm x 72mm
Weight:0.4kg
This Brake Release Board Switch Board from ABB is engineered with advanced features to optimize system performance and enhance safety standards in industrial environments.
The robust design ensures durability and longevity, even under harsh conditions, making it ideal for use in manufacturing, logistics, and other sectors where precision and reliability are paramount.
With its compact size and efficient power handling capabilities, this switch board seamlessly integrates into existing systems, facilitating easy installation and maintenance.
Featuring a dual-relay configuration, it offers enhanced control over brake release processes, ensuring smooth transitions between operational states and minimizing downtime.
The ABB 3HAB3001-1/4 Brake Release Board Switch Board comes equipped with an epoxy-coated high-grade steel construction, providing excellent resistance against corrosion and wear, ensuring a long service life and consistent performance.
